Digital Fuel Meters

Description

These small digital fuel meters are compatible with petrol and diesel fuels and provide accurate totalised fuel readings making them ideal for a range of applications.

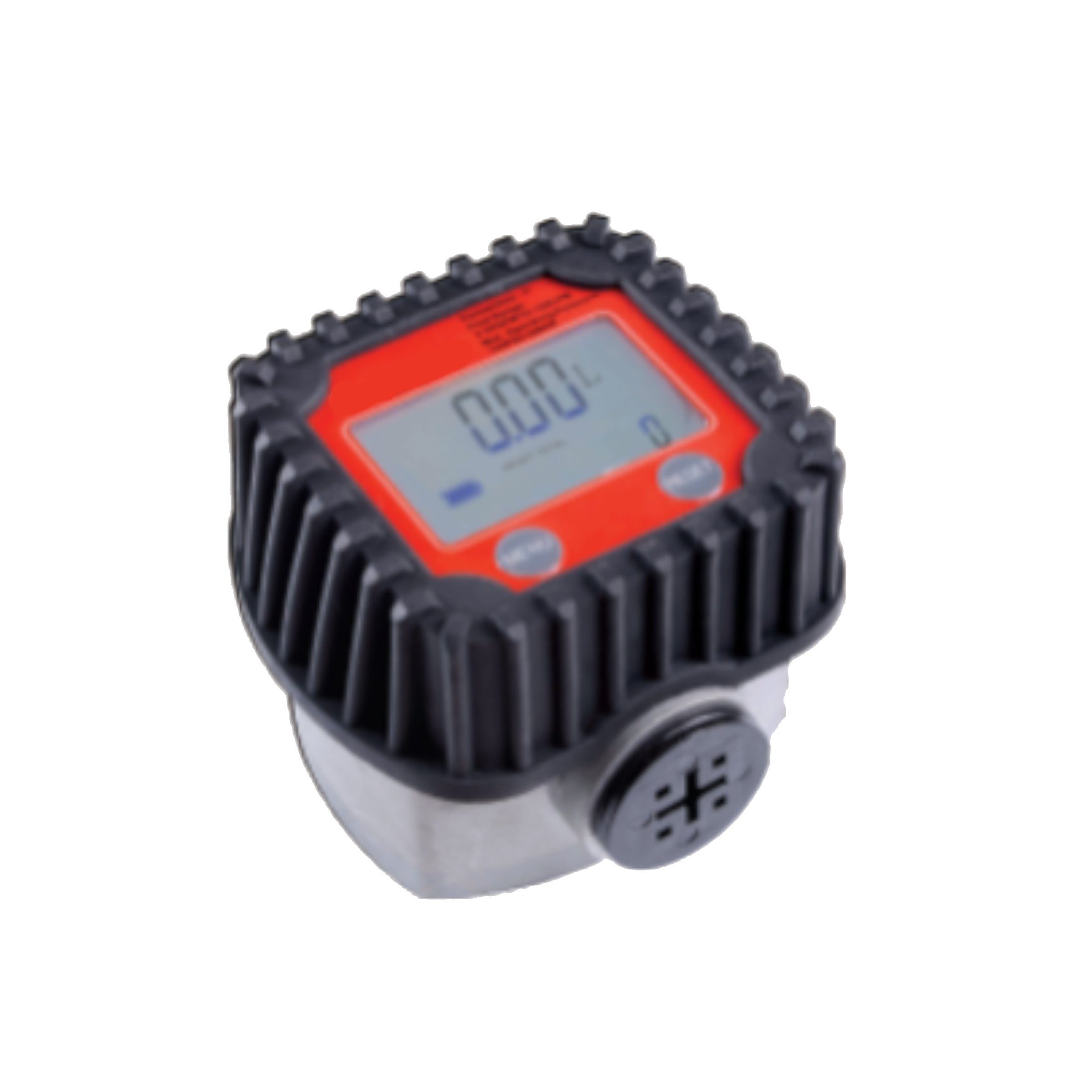

Digital Turbine Fuel Meter for Petrol or Diesel

• Explosion proof design compatible with petrol or diesel fuels
• Long lasting battery powered design saves complex wiring
• An accuracy reading of ±0.5%


Digital Flow Monitoring

Monitoring fuel totalised flow ensures an understanding of who, when and where expensive fuel is being consumed. These meters help to accurately monitor fuel consumption and are simple to incorporate in just about any installation.

Use of Meter provides the owners with the following but not limited to:

• Actual fuel consumption records
• Time tracking of the machinery work
• Fuel rationing
• Fuel theft detection and prevention
• Real-time monitoring and fuel consumption optimisation
• Engine tests for fuel consumption

Fuel Meter Maintenance

This meter is virtually maintenance-free. However, it is important that the rotor moves freely. Keep the meter clean and free of contaminants. If the rotor does not turn freely, apply a penetrating lubricant on the rotor, shaft and bearings. Remove any debris or deposits from the rotor using a soft brush or a small probe. Be careful not to damage the turbine rotor or supports.

NOT SUITABLE FOR WATER OR CHEMICALS

Activate the Meter

Turn ON by starting fuel flow or briefly pressing the DISPLAY button. The meter will display the batch or cumulative total from last use. The meter is programmed to conserve power by automatically turning off if not used for a period.

Reset Batch Total

Press DISPLAY briefly to display the batch total. Hold the DISPLAY button for three seconds to reset the batch total to zero.

Battery Replacement:

The meter is powered by two AAA alkaline batteries, which may be replaced while the meter is installed. When batteries are removed or lose power, the batch and cumulative totals reset to zero but the factory calibration is retained.
