Stump Grinder
Freight costs for heavy & bulky items includes a tailgate truck cost. If a forklift is available please contact our sales team to discuss.
You can also contact us for a freight quote prior to ordering.
For orders outside of Australia contact us for a quote.
Scintex can ship worldwide.
Description
Combine the reliability of a USA made, genuine Briggs and Stratton engine with the toughest engineering specifications and you have Australia's most heavy duty, petrol powered stump grinder. Stump grinding is an application where only quality equipment stands the test of time. The Paddock stump grinder, is simple in design yet rugged and reliable. A great option when considering Redroo stump grinders, at a more affordable price.

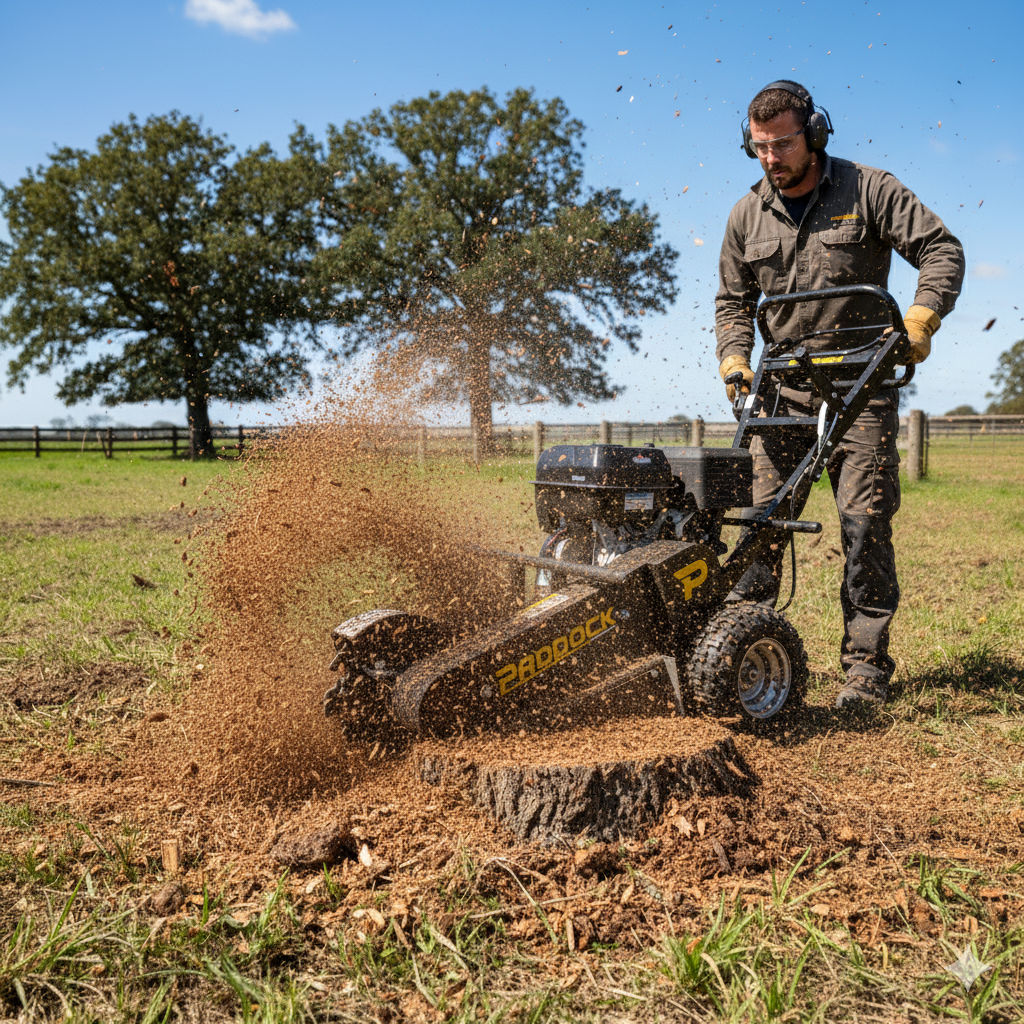

Paddock Stump Grinder - Powered by Briggs & Stratton
- Genuine Briggs and Stratton 4 stroke petrol commercial engine
- Dura-Bore cylinder sleeves for extended Briggs & Stratton commercial warranty
- Twin belt drive
- Centrifugal safety clutch
- Professional trade quality construction
- Reliable and simple pull start - Magnetron® Electronic Ignition System
- Extra heavy duty tungsten teeth for longer wear
- Adjustable handle position
Beware of imitation units offering inferior Chinese engines and fake Honda engines.
Suitable for a large spectrum of stump sizes. With the ability to chip down to 300mm deep the stumps and roots can be virtually removed and then filled in with top soil. Paddock has designed the stump grinder with simplicity in mind. Easy to operate and lends itself to DIY or home use as well as commercial use for landscapers and tradesmen. The heavy duty tungsten teeth are purpose designed and make light work of old and hardened stumps. While extremely hard wearing new tungsten teeth are available and easy to install.
Safety is paramount when performing a cutting and smashing application such as stump removal. While PPE is essential, the comprehensive deflection flaps drastically reduce flying wood chips. An internal clutch mechanism prevents feed back from the blades to the user. A deadman fail safe switch is present on the handle which cuts the engine as soon as the user releases their grip from the handle. A protective guard covers the muffler and the exhaust gas is directed sideways away from the user.
Designed to be low maintenance. The direct drive belts are easily tensioned. There are two grease nipples on the cutting head which are easily accessed and can be greased periodically. The Briggs & Stratton engine can be serviced at home with basic engine oil changes required and the occasional air filter replacement. Alternatively, the engines can be serviced at any small motor mechanic or Briggs and Stratton dealer.
All replacement and spare parts for this stump grinder are available through our parts department in Brisbane.
Stump Grinder Specification | Value |
---|---|
Engine | Briggs and Stratton 2100 Series |
Engine Displacement | 420cc |
Power | 13.5HP |
Torque | 28.48 Nm @ 2600 RPM |
Fuel | Unleaded petrol |
Start | Pull start - Magnetron® Electronic Ignition System |
Tank Volume | 6.6L |
Clutch | Centrifugal safety clutch |
Cut depth | 300mm |
Drive | Twin V-Belt direct drive |
Air Filtration | High-mount cartridge with pre-cleaner |
Engine Features |
Over head valves Lo-Tone muffler Low oil level cut-off protection Dura-Bore cast iron cylinder sleeve DuraLube gear-driven splash lubrication system Auto compression release |
Wheels | Tubeless pneumatic tyres. 145/70-6. Aluminium rims 6x4.50. |
Brake | Lever action drum brake |
Construction | Heavy duty, powder-coated steel |
Blades | 12 x Heavy duty tungsten carbide blades (4x left, 4x right, 4x middle) |
Weight | ~110kg |
Dimensions | 1.8m (L) x 0.75m (W) x 1.15m (H) - when assembled |
Safety | Includes: Deadman cut-off switch on the handle. Deflection flaps. Safety centrifugal clutch. |
Warranty | 2 Year warranty with 2 Year Briggs & Stratton engine warranty |
NOTE:Engines are stored and transported with only enough oil to keep the unit lubricated and additional oil will need to be added before starting. Minor assembly of the unit is necessary.
SHIPPING INFORMATION:
This item can be shipped Australia wide and is also available for pick up from our Brisbane warehouse. This item has a shipping weight of 125kg. We advise contacting us for a freight quote to your location.
