Centrifuge Package
Freight costs for heavy & bulky items includes a tailgate truck cost. If a forklift is available please contact our sales team to discuss.
You can also contact us for a freight quote prior to ordering.
For orders outside of Australia contact us for a quote.
Scintex can ship worldwide.
Description
This is a centrifuge kit with all the high quality components needed to filter engine or hydraulic oil, diesel, biodiesel and other fuels. Reliable with no ongoing costs like filters with elements and cartridges.
Centrifuge Package in Size 25 or Size 60
- A complete centrifuge set up
- Compatible with engine oil, vegetable oil, diesel and biodiesel filtration

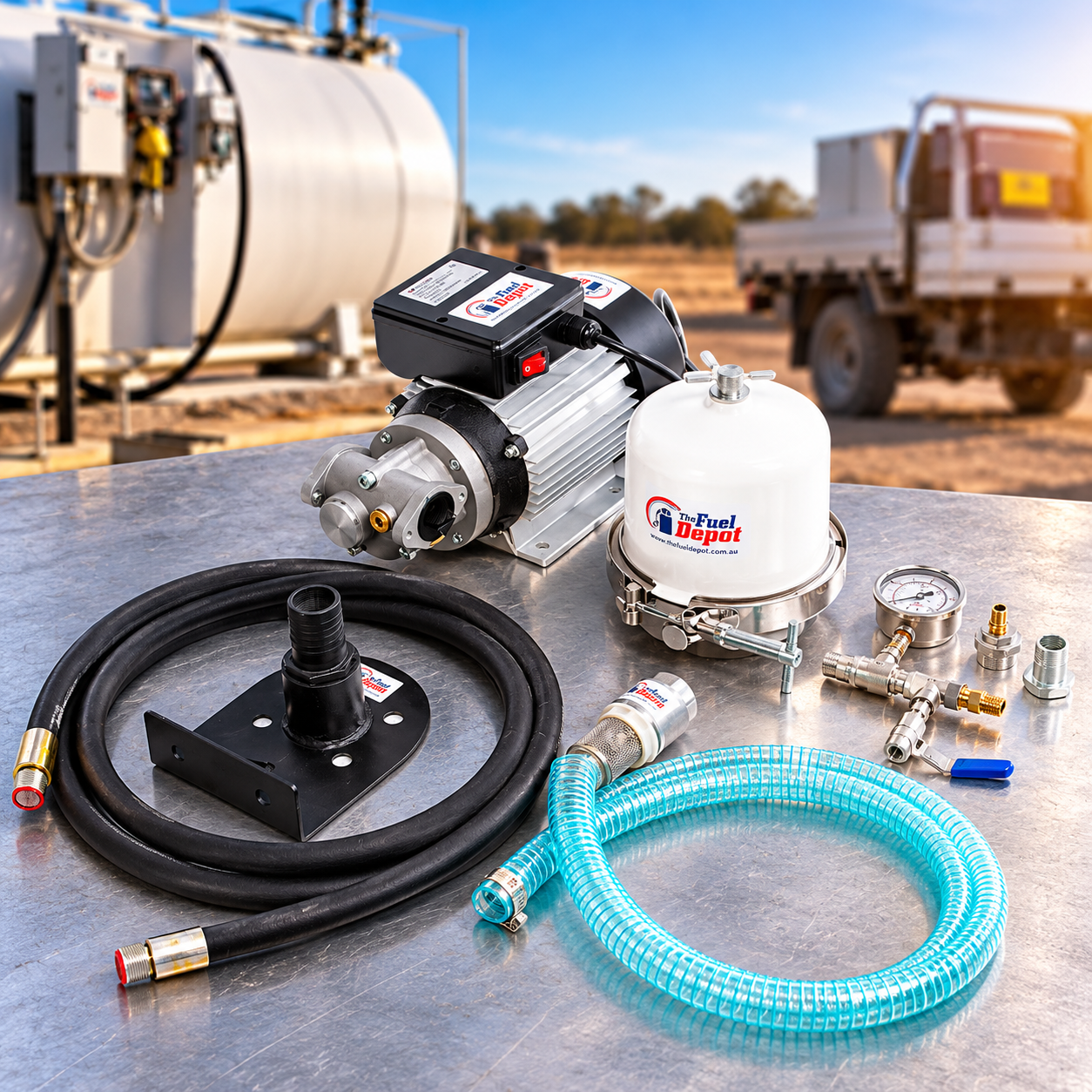

Kit includes the following:
- Centrifuge and mounting bracket
- 240V oil gear pump
- High Pressure hose
- Suction hose with inlet strainer
- Stainless steel fittings and bypass valve
- Pressure gauge
- Wire reinforced suction hose and inlet strainer / check valve
Ideal for industrial use, home use, biodiesel and SVO applications as well as boating and marine filtration. Customers have used these kits to make trolley mounted, portable filtration solutions.
| Specification | SOC025P | SOC060P |
|---|---|---|
| Kit Size | 25 | 60 |
| Rate @ 100psi | ~5 lpm | ~11 lpm |
| Rotor dirt capacity | 0.25 L | 0.6 L |
| Pump Capacity | 9 LPM | 14 LPM |
| Rotor Oil Capacity | 0.32 L | 0.75 L |
| Inlet Port size | 1/4" BSP | 3/8" BSP |
| Maximum Operating Pressure | 101 PSI (7 Bar) | 101 PSI (7 Bar) |
| Maximum Fluid Temperature | 60 C (limited by pump) | 60 C (limited by pump) |
| Centrifuge Wetted Parts | Nickel Plated | Nickel Plated |
Guide to installation and set up of the Scintex centrifuge kit.
