Diesel Fueling Station 80L/min 240V
Freight costs for heavy & bulky items includes a tailgate truck cost. If a forklift is available please contact our sales team to discuss.
You can also contact us for a freight quote prior to ordering.
For orders outside of Australia contact us for a quote.
Scintex can ship worldwide.
Description
These are the highest quality Gespasa brand 240V diesel refueling stations we've come across and are ideal for people filling fleet vehicles, machinery and boats. These kits can be run continuously for large fuel transfers with accurate fuel measurements.

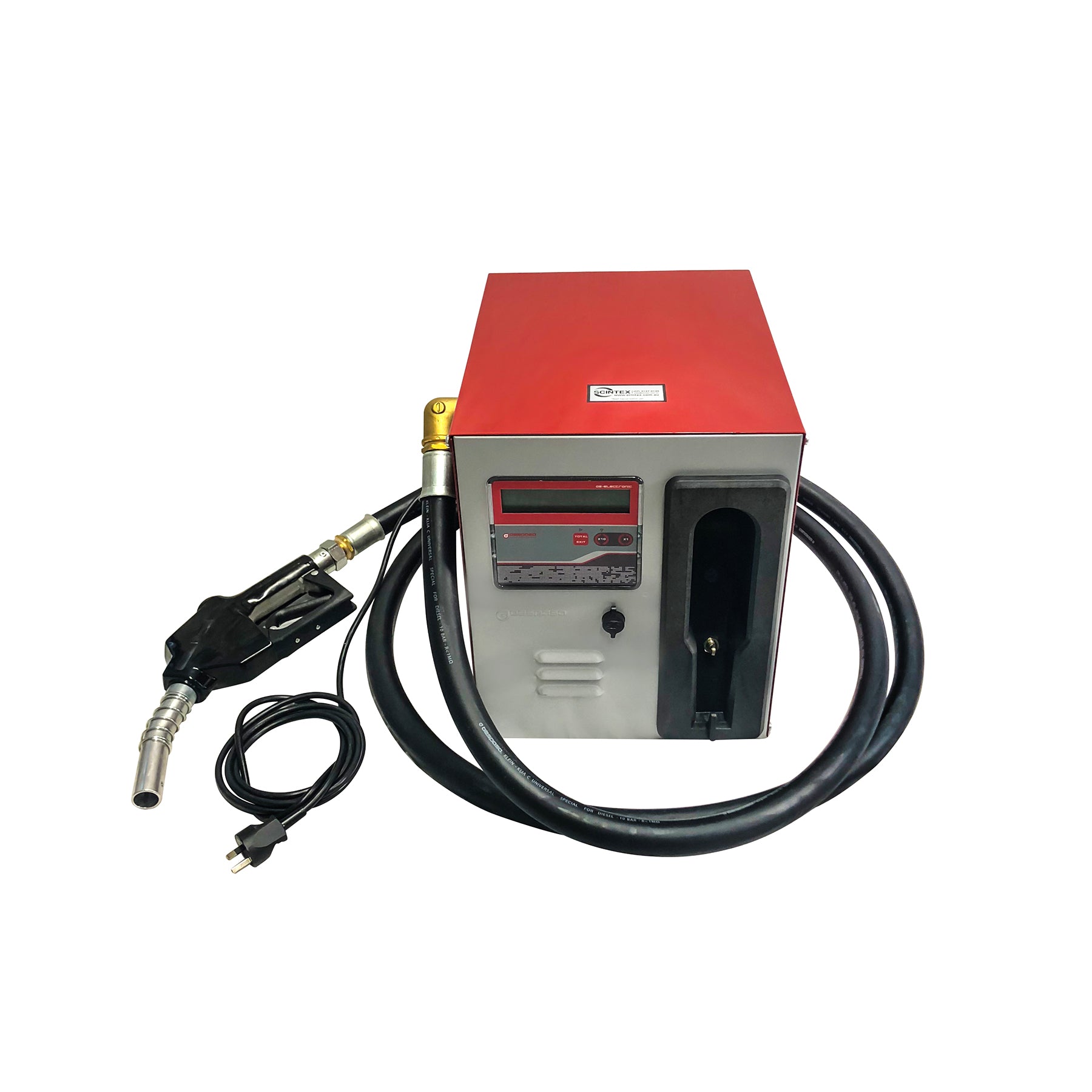

GESPASA 75-85 L/min 240V diesel pump refueling station
- Suitable for bulk fuel transfers
- Free flows of 75-85 LPM with diesel
- Includes a high accuracy digital flow meter with totaliser
- Includes a high flow automatic shutoff nozzle
Ideal for commercial uses such as farmers, marine industry and mining working in remote areas filling large machinery and equipment. These refueling stations will provide trouble free performance so you can focus on more important tasks. These pump stations are weatherproof and suitable for outdoors installations. They are of a heavy duty steel construction with a high build powder-coat finish to prevent corrosion.
Each unit comes with a high flow pump rated to 100 L/min and 120 L/min nozzle so you're not left refueling for excessive periods. Ideal for large machinery and large tanks. Also included is the digital flow meter with totaliser which offers accuracy and reliability. The 6 digit display is powered by the 240V supply so no batteries to ever run flat. The kit includes 4m of double layer 25mm delivery hose. Hose connections are professionally swagged preventing leaks and blow-outs.
Specification | Value |
---|---|
Transfer capacity | 75-85 L/min free flow |
Inlet / Outlet | 1" BSP female thread or flanges |
Power |
240V AC |
Consumption | 4-6 amps |
Motor | 1500 rpm, 1 kW, self vented, dust protected, S1 continuous duty |
Rating | IP55 |
Construction |
Steel casing with high build epoxy coating Special corrosion protection treatment inside and out |
Suction Lift | 2.7 m |
Discharge Head | 30 m |
Compatible Fluids |
Diesel |
Make / Model | Gespasa 100GE-230 V |
Features |
4m double layer discharge hose Automatic high flow nozzle with trigger lock Internal re-circulation bypass in pump Digital flow meter w/ totaliser (+-0.5% accuracy) Rust protection treatment Quality European construction |
Warranty |
12 months |
Weight | ~32 kg |
Dimensions |
405 x 460 x 405 mm (length x width x height) |
