1000kg Digital Drum Scales with Ramps – 1m x 1m Platform
Freight costs for heavy & bulky items includes a tailgate truck cost. If a forklift is available please contact our sales team to discuss.
You can also contact us for a freight quote prior to ordering.
For orders outside of Australia contact us for a quote.
Scintex can ship worldwide.
Description
Heavy-duty digital drum scales with a low-profile 1m x 1m platform and integrated loading ramps for easy roll-on weighing. With a 1,000kg capacity, 1kg increments, portable design and rechargeable digital indicator, these scales are ideal for weighing drums, small pallets, crates, boxes and other suitable loads.

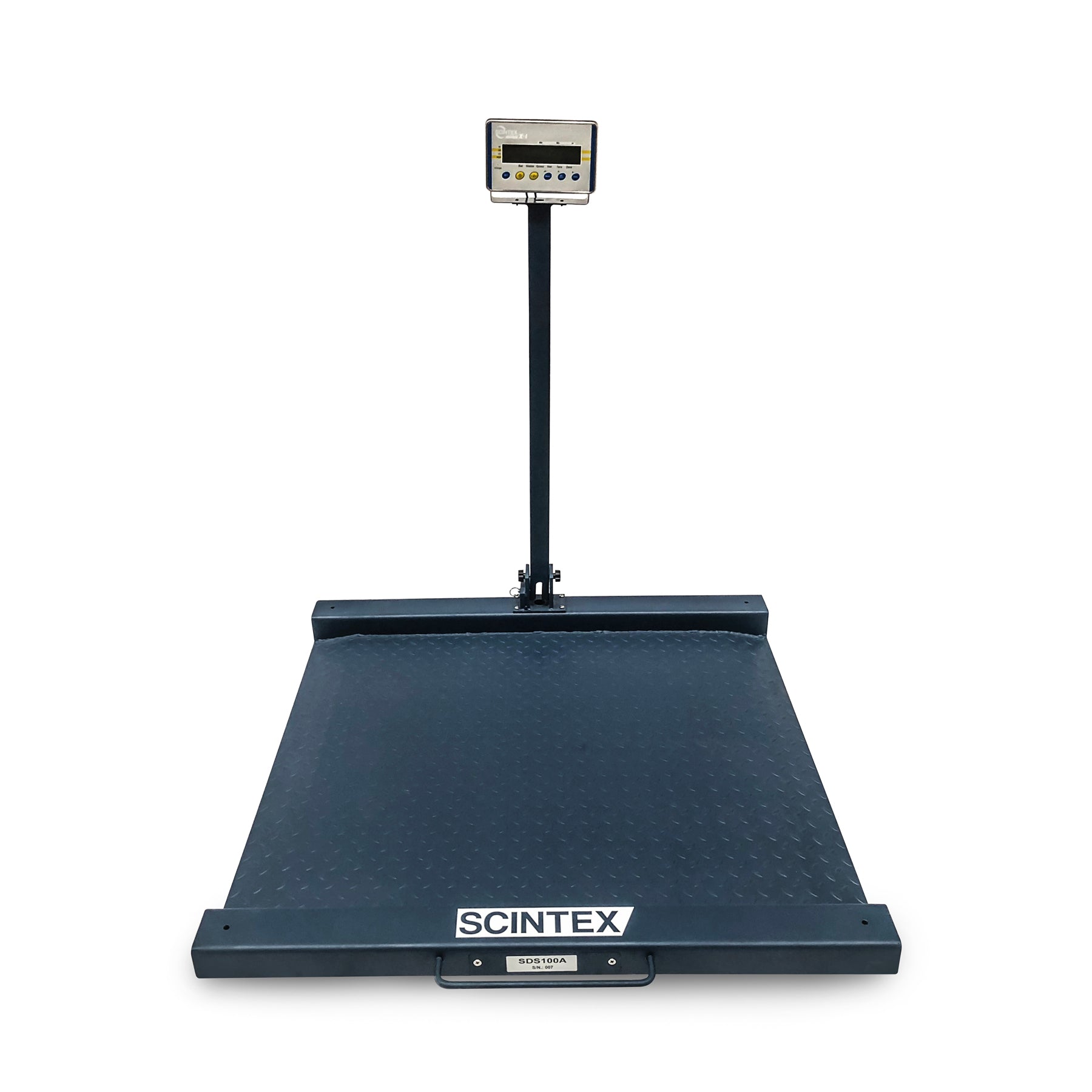

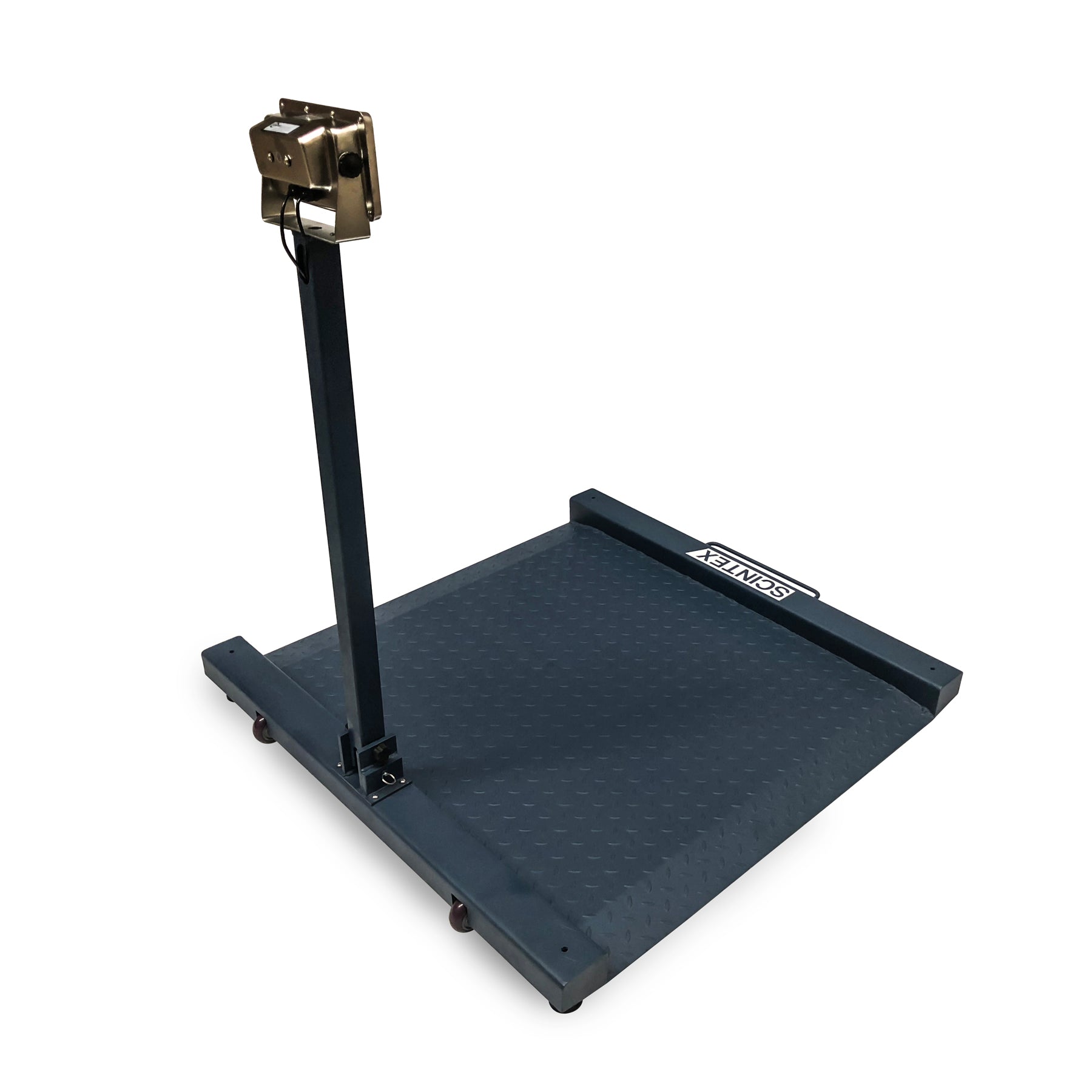

1000kg Digital Drum Scales with Integrated Ramps
Designed for workshops, warehouses, farms, manufacturing facilities and industrial applications, these digital drum scales combine a large 1m square weighing platform with integrated ramps to make loading and unloading easier.
The low-profile platform sits approximately 35–50mm high when assembled, allowing drums and other wheeled loads to be rolled onto the scale rather than lifted.
Built-in transport wheels and a collapsible indicator stand make the scale easier to move and store when not in use.
Digital Drum Scale Features
- 1,000kg maximum weighing capacity
- 1kg display increments
- Large 1.0m x 1.0m weighing platform
- Integrated loading and unloading ramps
- Low-profile 35–50mm assembled platform height
- Heavy-duty 5mm steel platform construction
- Checker plate surface with blue powder-coated finish
- 4 load cells
- Adjustable feet for levelling
- Built-in wheels for easier transport
- Digital stainless steel indicator
- Large 31mm display characters
- Green backlit display for improved visibility
- kg and lb weighing units
- Zero and tare functions
- Rechargeable internal 6V battery
- Over 24 hours stated continuous battery operation
- 240V charger included
- Can operate from battery or mains power
- Collapsible indicator stand included
- Hard carry case included for the indicator
- 12 month warranty
Low-Profile Roll-On Platform
The integrated ramps allow suitable drums, bins, trolleys and other wheeled loads to be rolled directly onto the weighing platform. This is particularly useful for 44 gallon / 205L drums and other heavy items that are difficult to manually lift onto conventional platform scales.
The 1m x 1m platform also provides useful weighing area for compatible small pallets, crates, boxes and industrial loads.

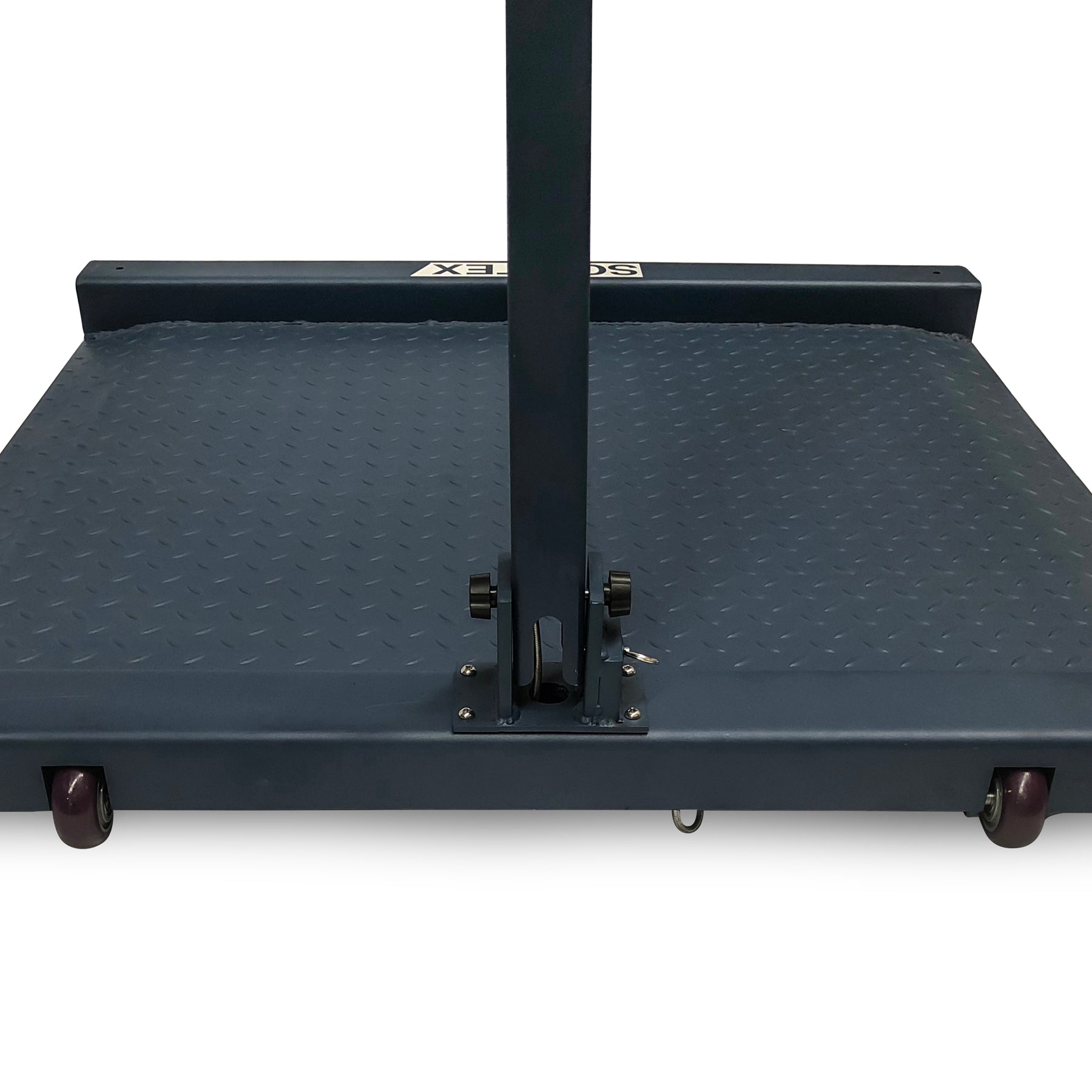

Portable Industrial Scale
Despite its heavy-duty steel construction, the scale incorporates wheels to assist with repositioning around the workplace. The indicator stand can also be collapsed when the scale is being moved or stored.
Adjustable feet allow the platform to be levelled on a suitable firm surface before weighing.

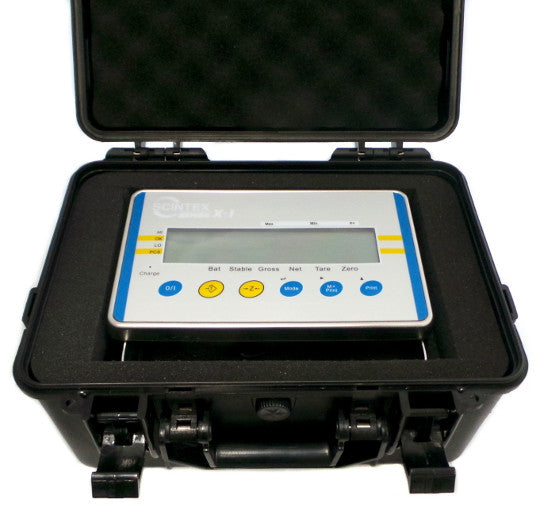

Rechargeable Digital Indicator
The supplied stainless steel digital indicator features large 31mm characters with a green backlit display for easy reading in a range of lighting conditions.
The indicator can operate from its internal rechargeable 6V battery for more than 24 hours of stated continuous use or from mains power using the supplied 240V charger.
Common weighing functions include:
- Zero
- Tare
- kg or lb display
Calibration
The scale indicator is supplied unlocked, allowing the system to be calibrated using an appropriate known reference weight. Scintex can also provide calibration and repair services for these scales.
The stated accuracy is ±1% within the calibration range. Correct levelling, calibration, load positioning and operating conditions are important for repeatable weighing results.
Typical Applications
- 44 gallon / 205L drums
- Small pallets
- Crates and boxes
- Warehouse weighing
- Manufacturing
- Freight and logistics
- Agricultural applications
- Workshops
- Industrial material handling
Digital Drum Scale Specifications
| Specification | Value |
|---|---|
| Maximum Capacity | 1,000kg |
| Display Increments | 1kg |
| Weighing Units | kg or lb |
| Platform Size | 1.0m x 1.0m |
| Assembled Height | Approx. 35–50mm with ramps |
| Stated Accuracy | ±1% within the calibration range |
| Load Cells | 4 |
| Platform Construction | Heavy-duty steel |
| Steel Thickness | 5mm |
| Platform Finish | Checker plate, blue powder coat |
| Indicator Construction | Stainless steel |
| Display Character Height | 31mm |
| Display | Green backlit digital display |
| Functions | Zero and tare |
| Internal Battery | Rechargeable 6V battery |
| Stated Battery Runtime | Over 24 hours continuous use |
| Charger | 240V charger included |
| Levelling | Adjustable feet |
| Transport | Built-in wheels |
| Indicator Stand | Included, collapsible |
| Indicator Carry Case | Included |
| Warranty | 12 Months |
Important Weighing Information
For best results, position the scale on a firm, stable and level surface and ensure all adjustable feet are correctly supported. Loads should be positioned securely on the platform and remain within the stated 1,000kg maximum capacity.
Note: References to OIML/NTEP load-cell approvals do not necessarily mean the complete weighing system is approved for legal-for-trade use in Australia. Where weighing results are used for commercial trade, regulatory or certified applications, confirm the applicable calibration and approval requirements before use.
Calibration & Repairs
Scintex can provide calibration, servicing, repairs and replacement parts for these scales.
View Scintex Scale Calibration & Repair Services
Need to Weigh Larger Pallets?
For applications where pallets need to be weighed while being moved, Scintex also supplies pallet jack scales.
