Hot Water Circulation Pump
Description
These specialty circulation pumps are made for the pumping of hot fluids such as water and glycol at temperatures up to 150°C. The heavy duty construction ensures a safe and reliable pump for extreme services.
240V Hot Water Circulation Pump
Use these pumps for the circulation of hot coolants for industrial machines and for household heating. The pumps unique design ensures reliability and performance.
The pump features a 3-speed switch mounted directly to the terminal box. By adjusting the pump speed the user can directly change the pumps flow performance and power usage.
Pump Features:
- Suitable for fluid temperatures -10°C - 150°C
- Compatible with Water/Glycol mixes 1:1
- 3 speed settings delivers a range of performances curves
- Cast iron pump body with ceramic bearings
- 12-month warranty
Pump Uses
These pumps are commonly used for circulating heating fluids around houses and buildings. They are also used in industry for circulating hot glycol solutions to process lines. The pumps can be used for circulating engine coolants in stationary power generation engines.
Installation and mounting

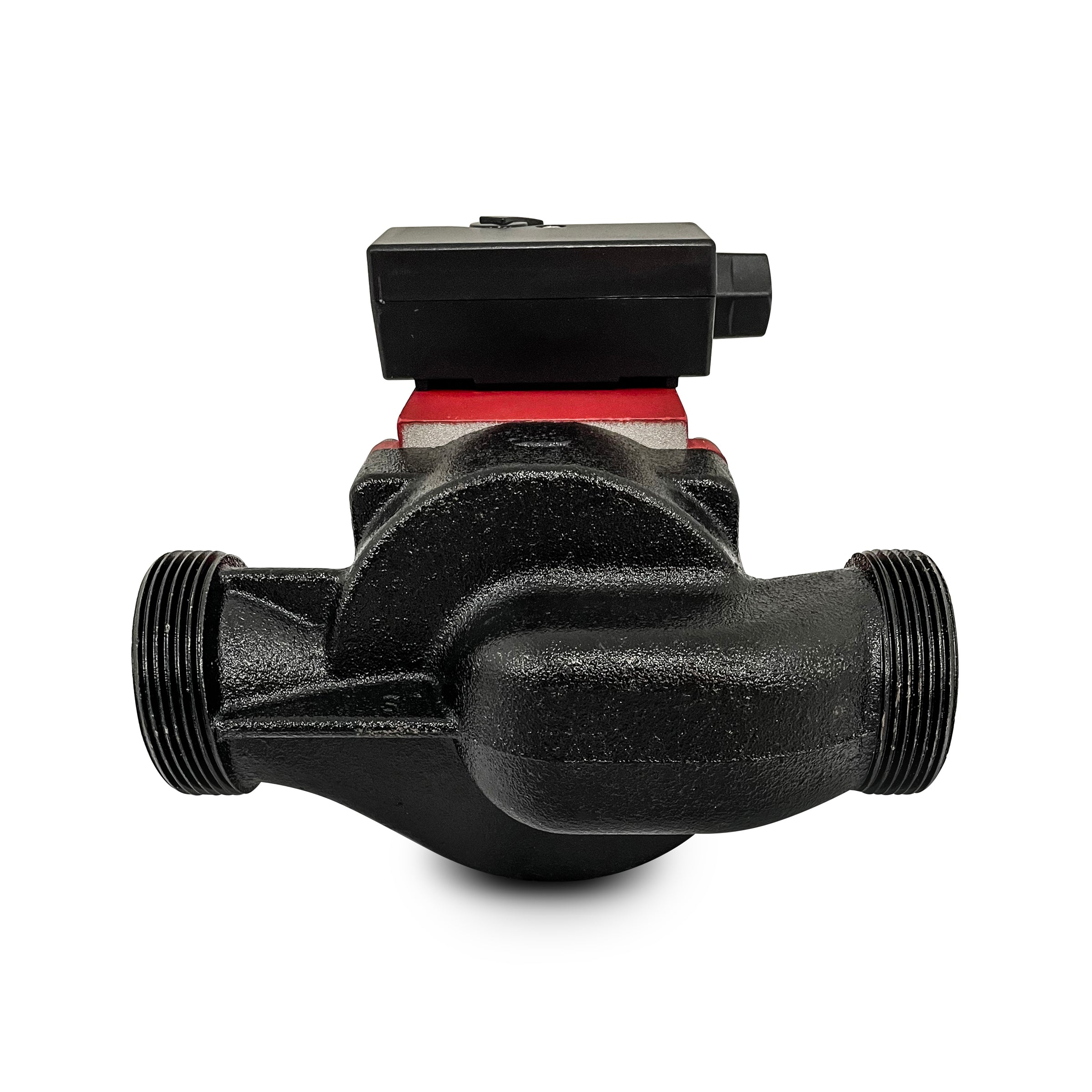

These pumps must be mounted with the motor shaft in the horizontal plane as shown in the image above.
| Model | SCP328G180 |
|---|---|
| Motor |
220V ~50Hz 150/200/270 Watt (depending on speed setting) Non over-loading design IP 44 3 speed via selector switch |
| Pump Type | Centrifugal |
| Inlet / Outlet | 2" male thread |
| Max. Flow rate | 40/98/155 L/min (depending on speed setting) |
| Max. Head (M) | 5/7/8 m (depending on speed setting) |
| Liquid Temperatures | -10°C to 150°C |
| Construction |
Cast iron pump body Stainless steel shaft and impeller Ceramic bearings |
| Duty Cycle | Continuous |
| Mounting Position |
Pump shaft in the horizontal plane |
| Certified Food Grade | No |
| Suitable Fluids | Heating water to VD12035 Heating water Water / glycol mixtures max. mixing ratio 1:1 |
| Approx. Weight | 5.5 kg |
| Warranty | 12 Months |
