High Flow Oval Gear Meters
Current Price
$479.00
Original Price
$537.00
(inc GST)
SKU SPEVOGMA25
FREIGHT ESTIMATE: Add to cart for shipping costs.
Description

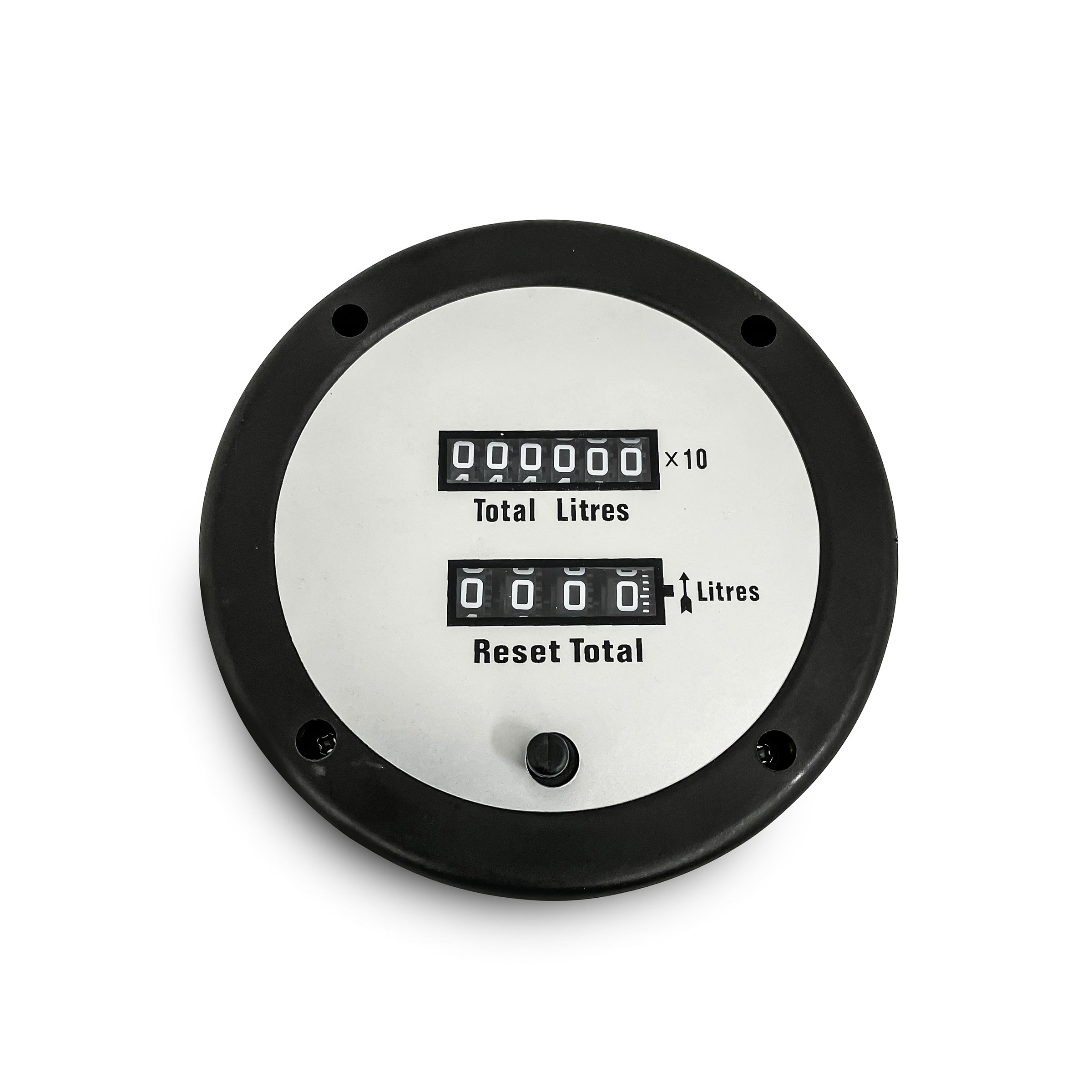

High flow and high pressure flow meter with analogue display. Plumb inline using the threaded BSP female ports. Scintex can provide stainless steel fittings and hosing to suit your application.

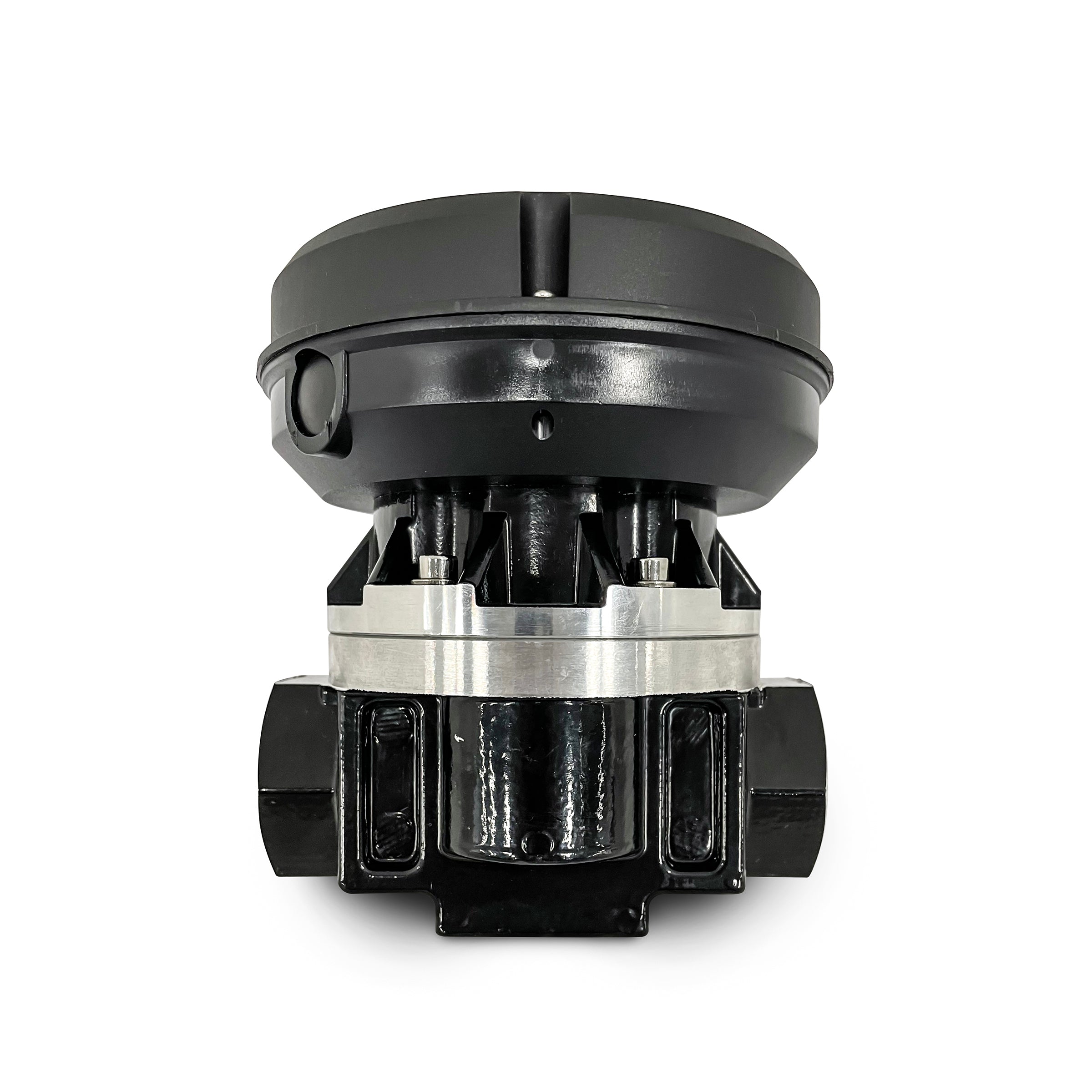

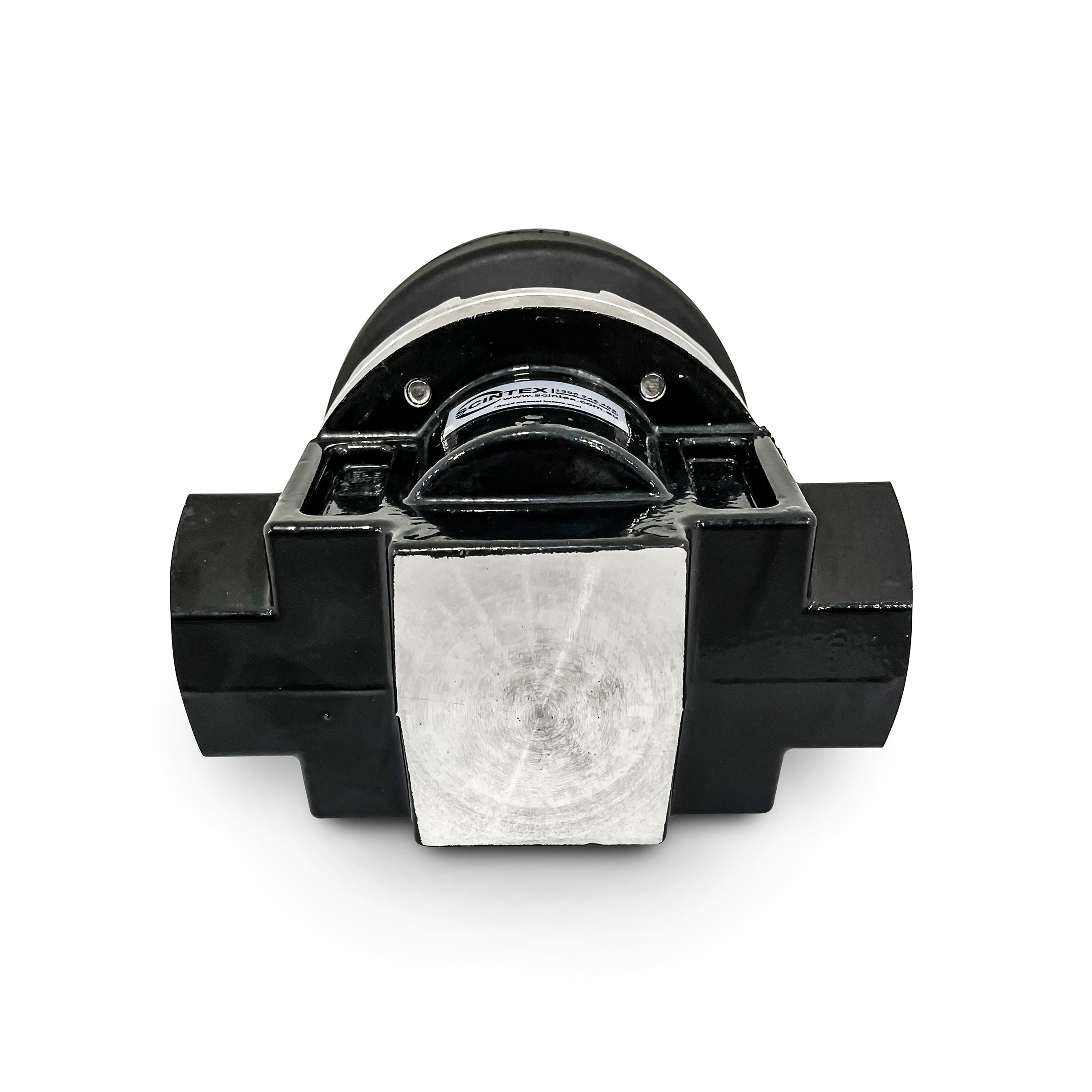

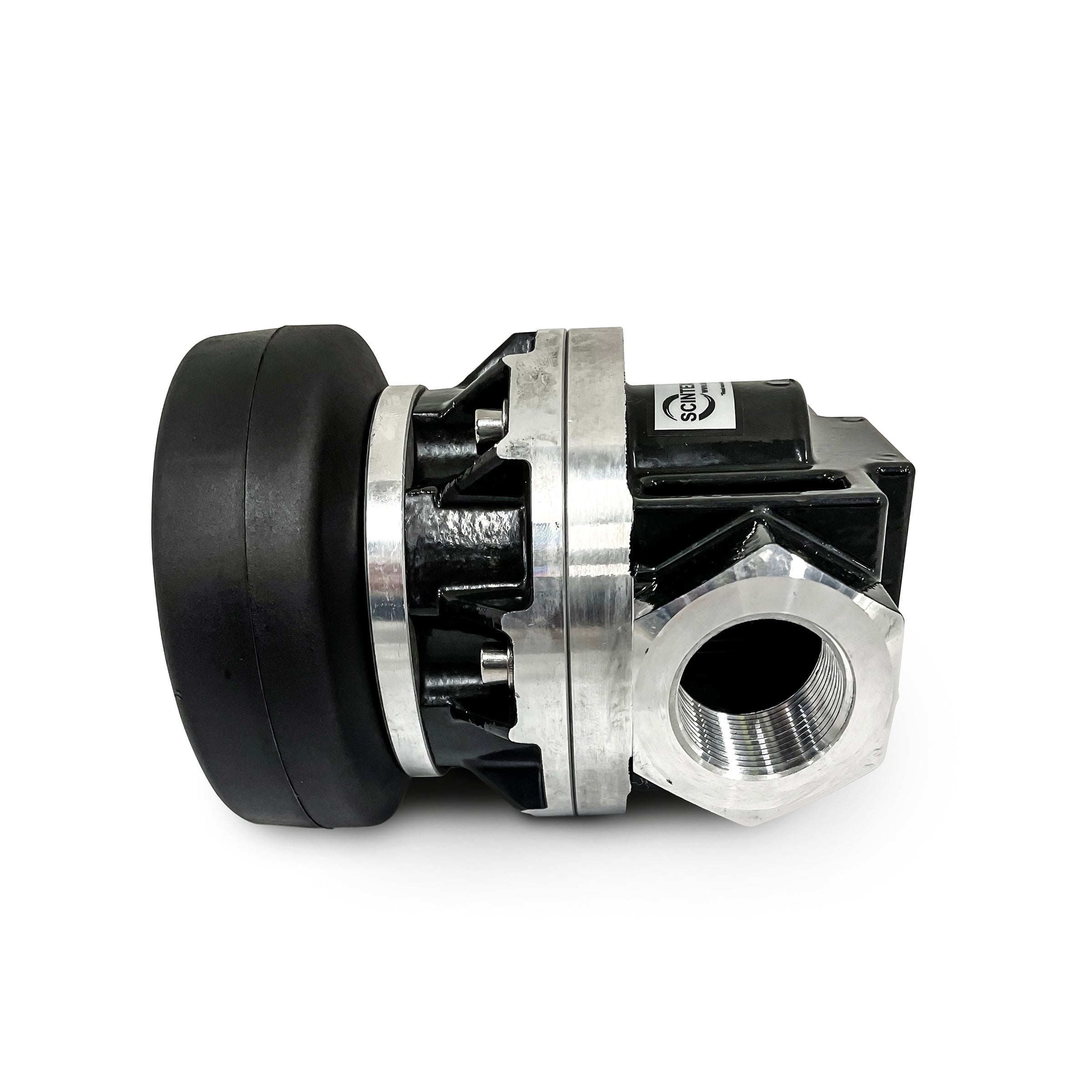

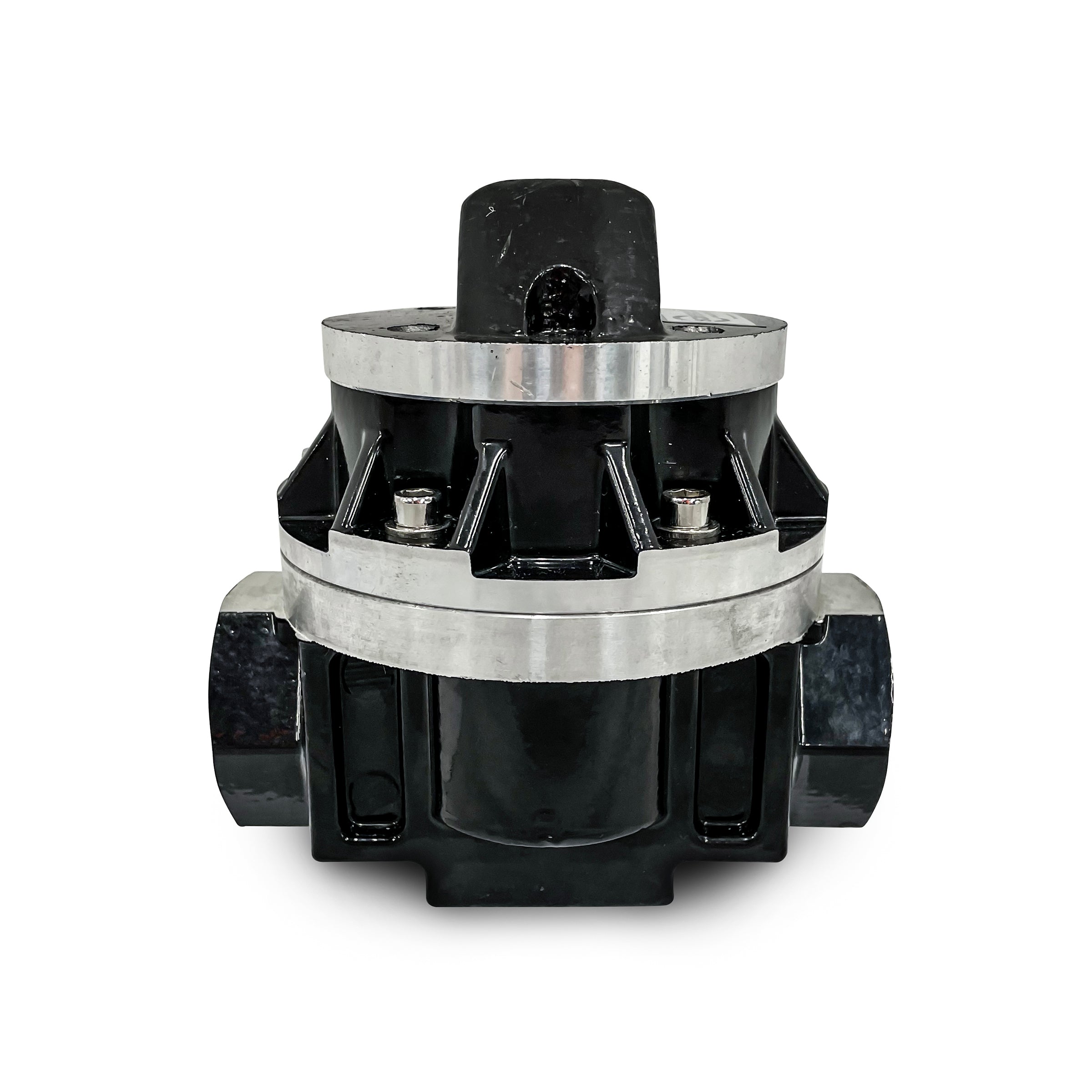

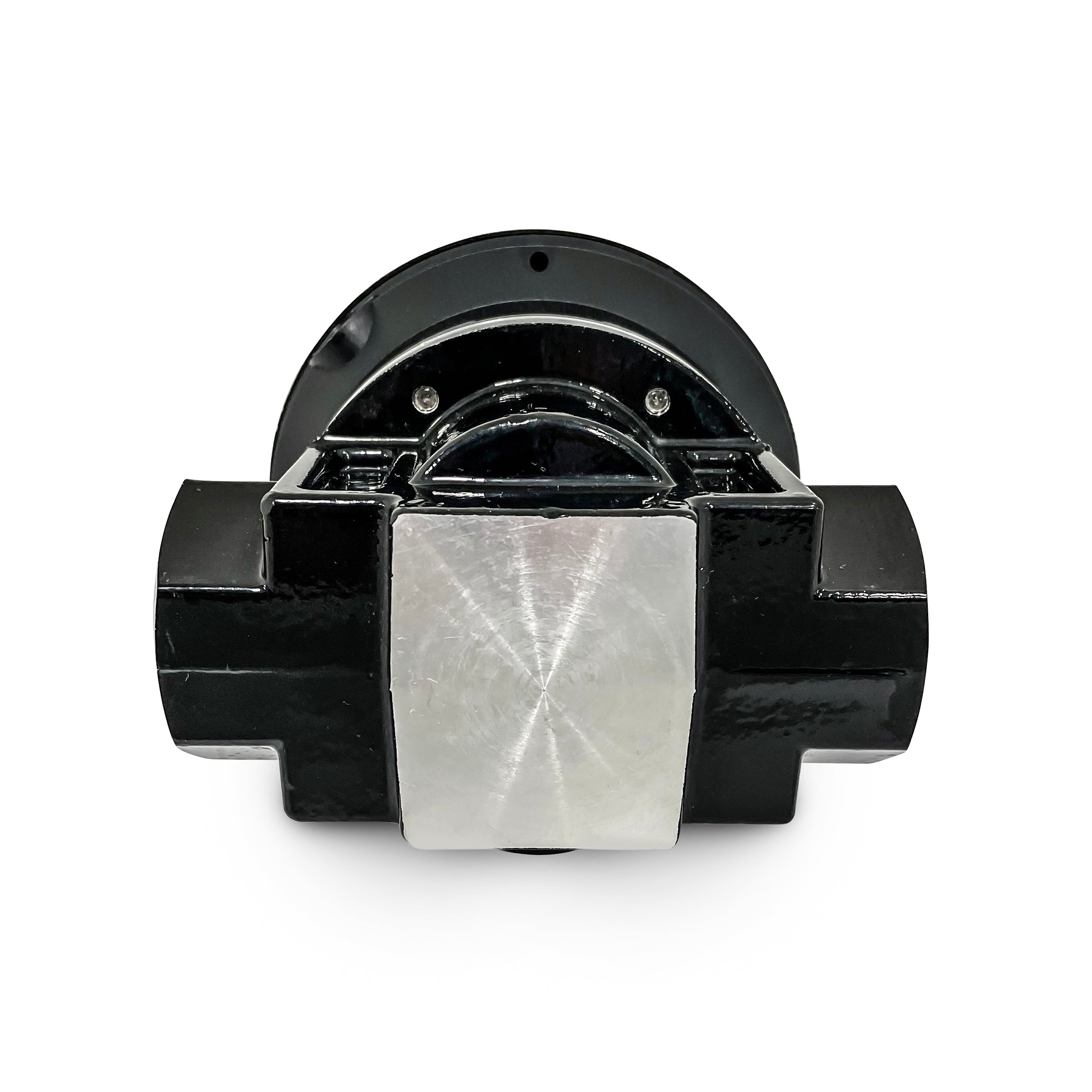

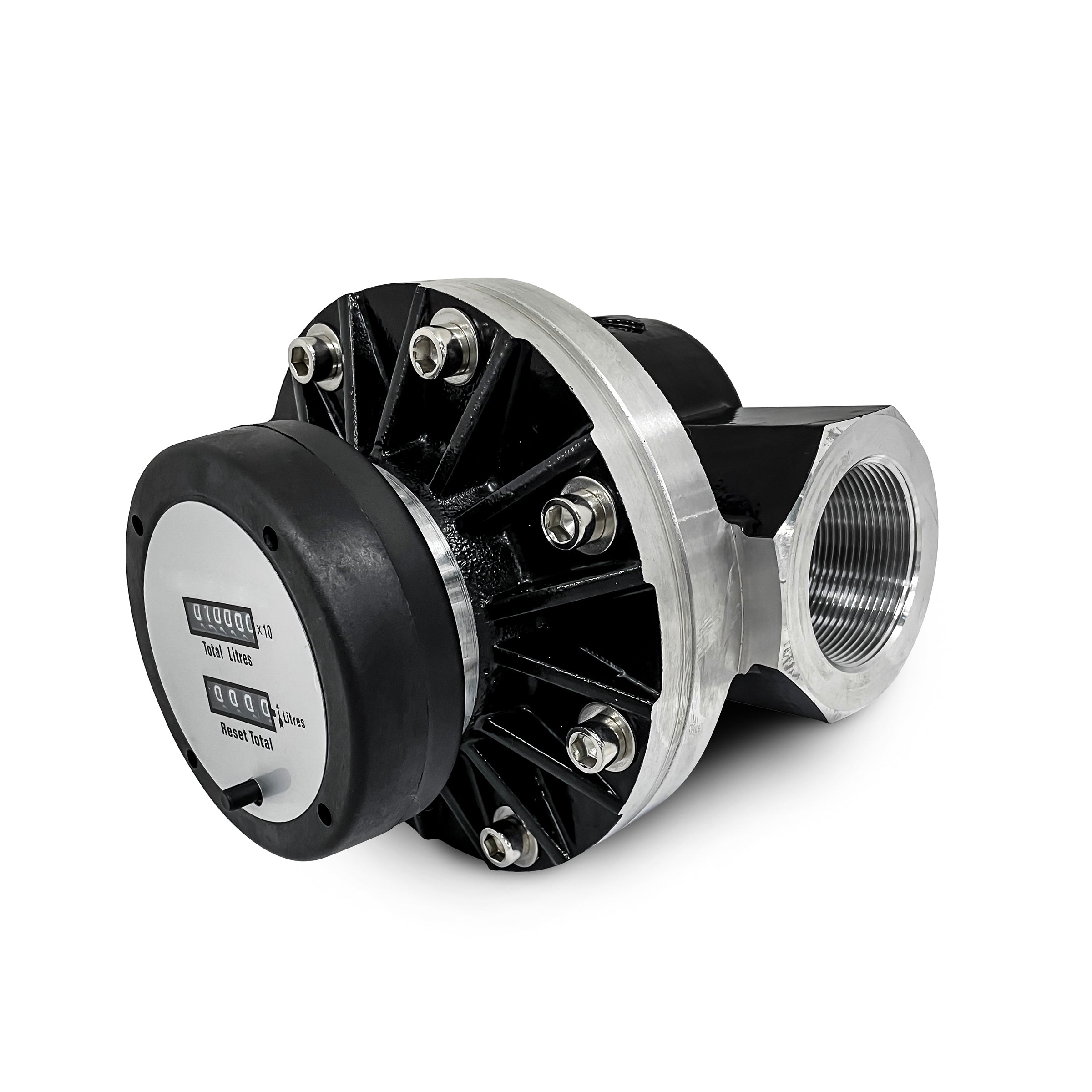

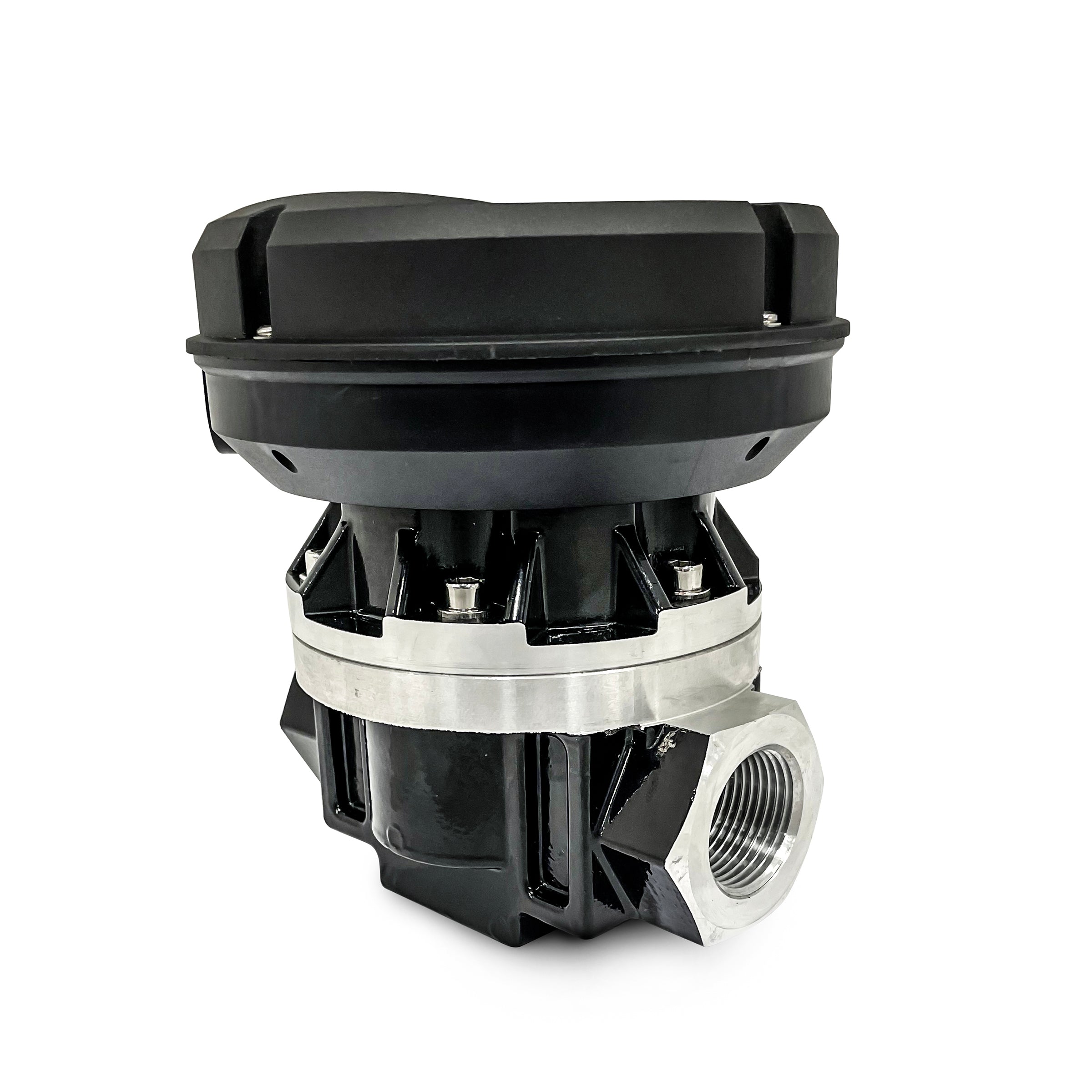

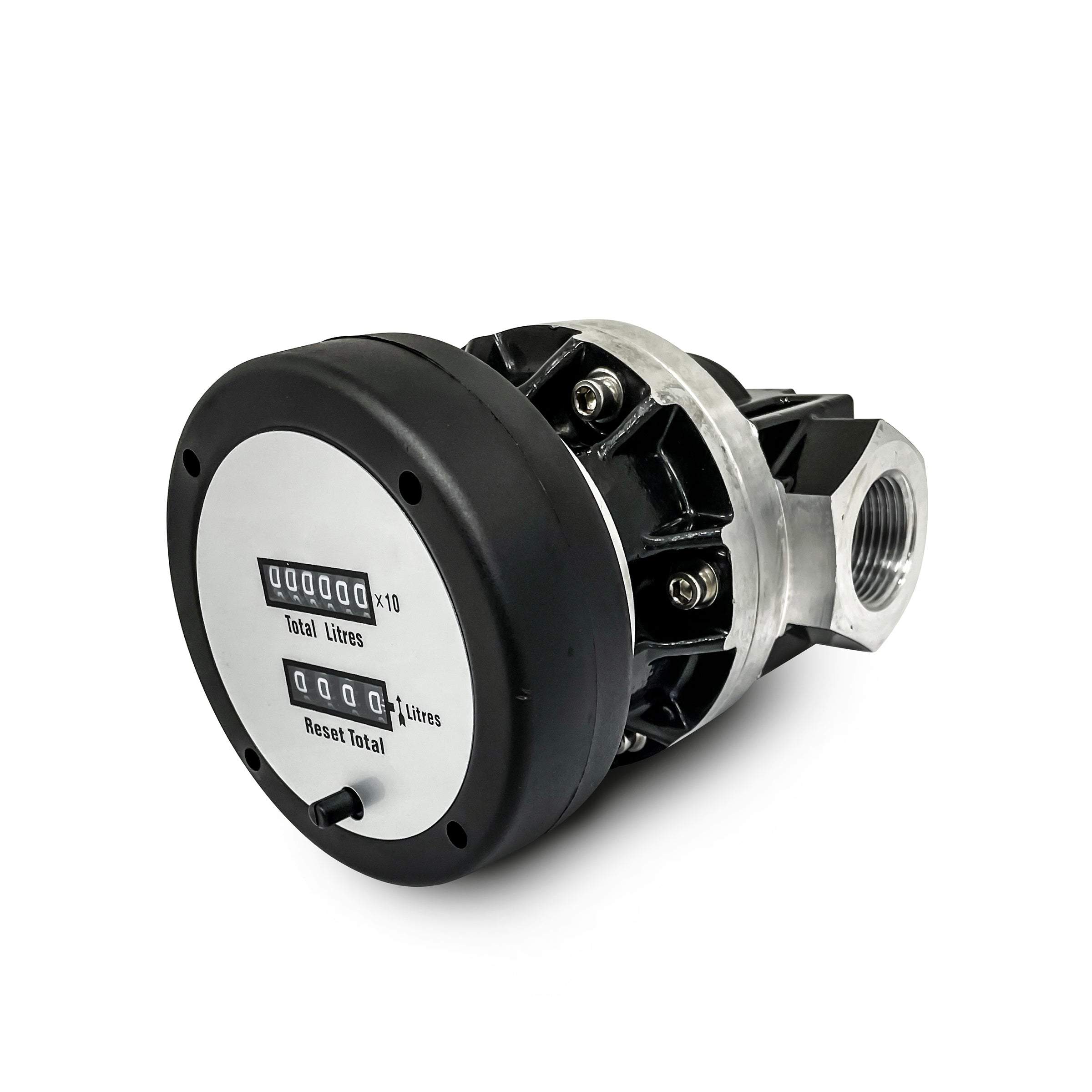

High Flow Analogue Oval Gear Flow Meter
- This Aluminium, oval gear meter has the ability to handle a wide range of fluid viscosities with exceptional levels of repeatability and durability
- Compact size and low maintenance
- Easy to read display
- Low pressure drop
- Can be mounted horizontally and vertically
- Applications in measuring fuel, diesel, oil, petroleum products, chemicals, food based products and ingredients
| Flow Meter Specification |
SPEVOGMA25 / SPEVOGMB25 / SPEVOGME25 |
SFMOGMA50 / SPEVOGMB50 / SPEVOGME50 |
|---|---|---|
| Inlet / Outlet | 1" BSP | 2" BSP |
| Minimum Flow Rate | 20 L/min | 30 L/min |
| Maximum Flow Rate | 200 L/min | 300 L/min |
| Accuracy | +/- 0.5% | +/- 0.5% |
| Repeatability | <0.03% | <0.03% |
| Maximum Viscosity Rating | 1000 CPS | 1000 CPS |
| Maximum Operating Pressure |
1.8 MPa, 261 psi (SPEVOGMB25 /3.4 MPa, 490 psi) |
1.8 MPa, 261 psi |
| Construction | Aluminium | Aluminium |
| Functions | Totaliser, Total Reset | Totaliser, Total Reset |
| Options |

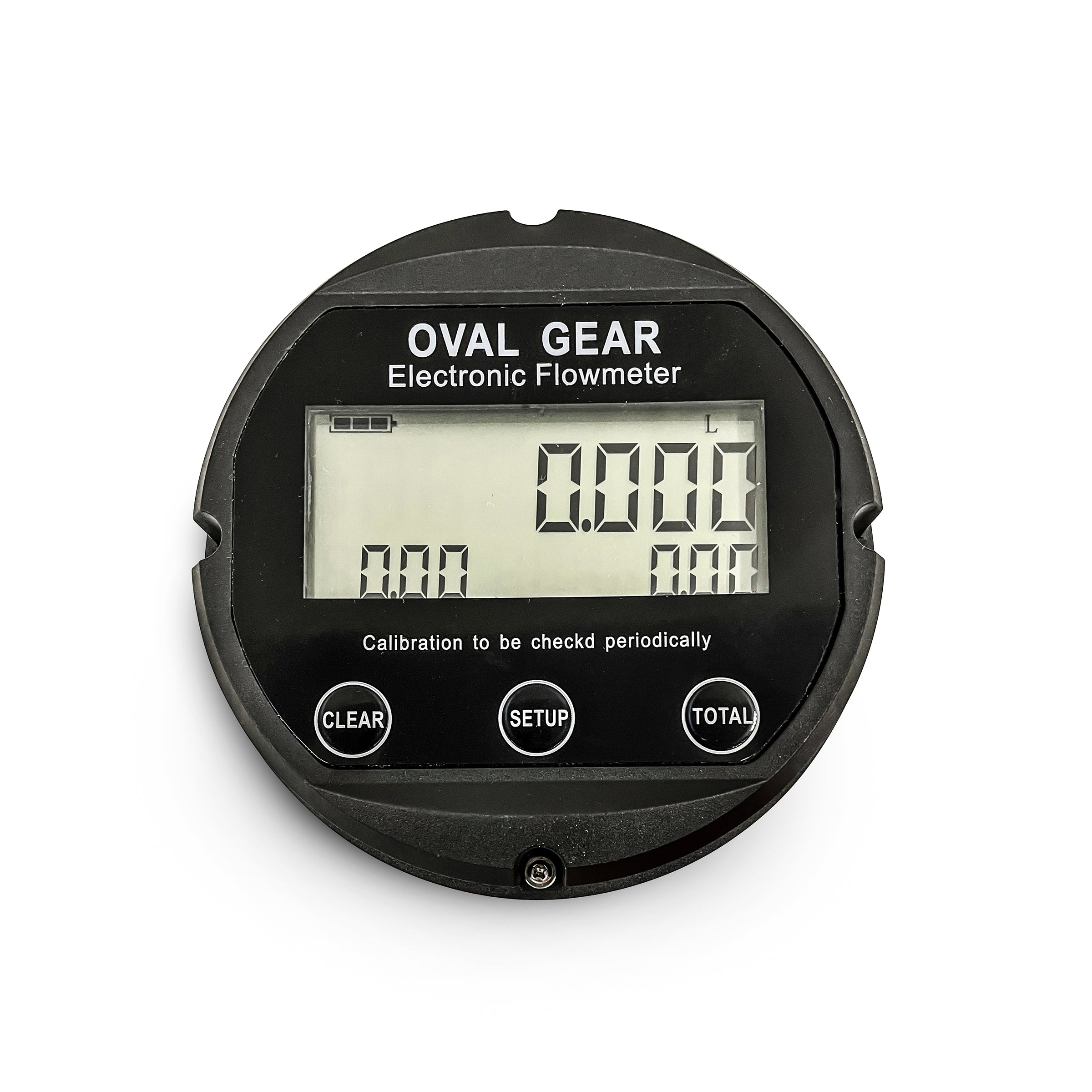

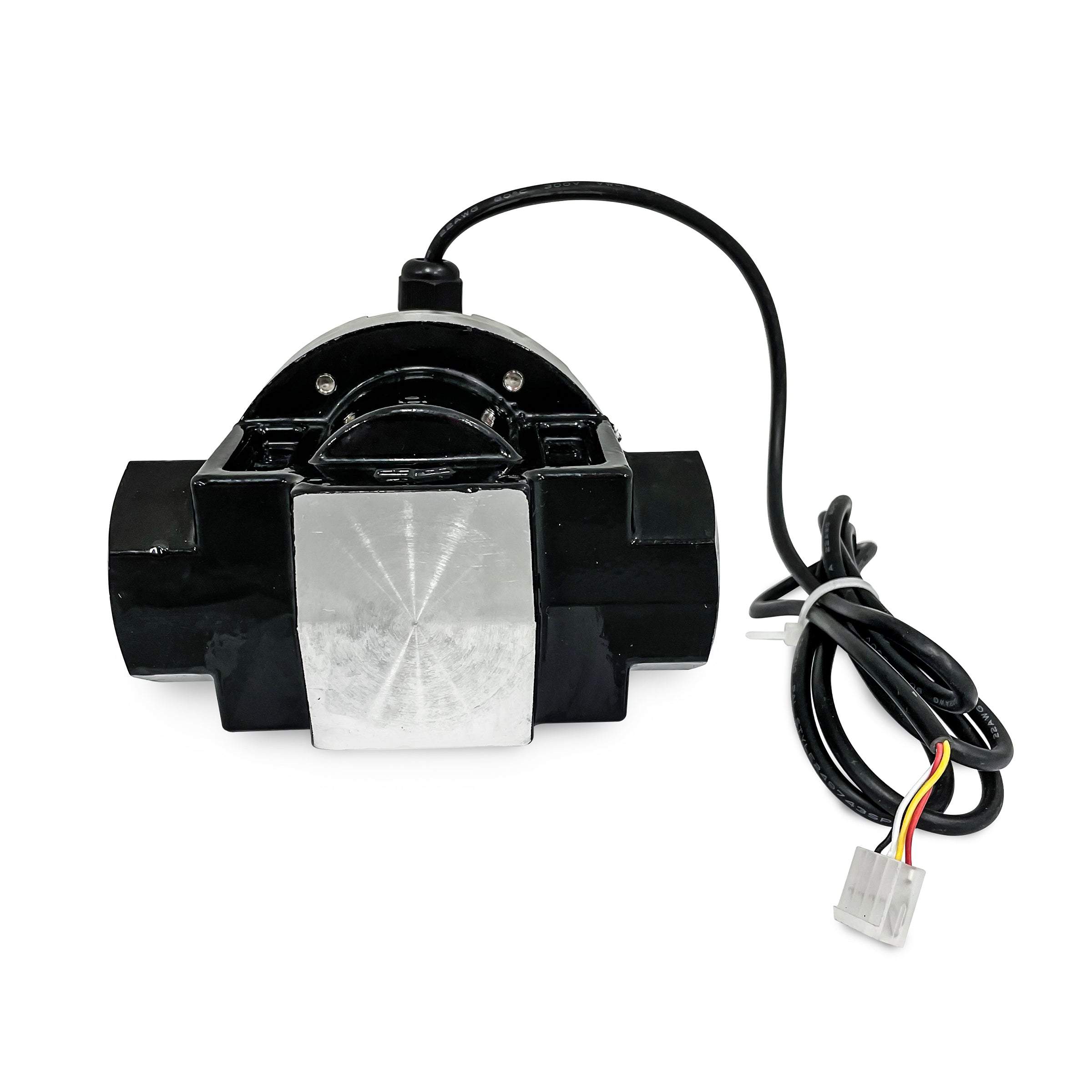

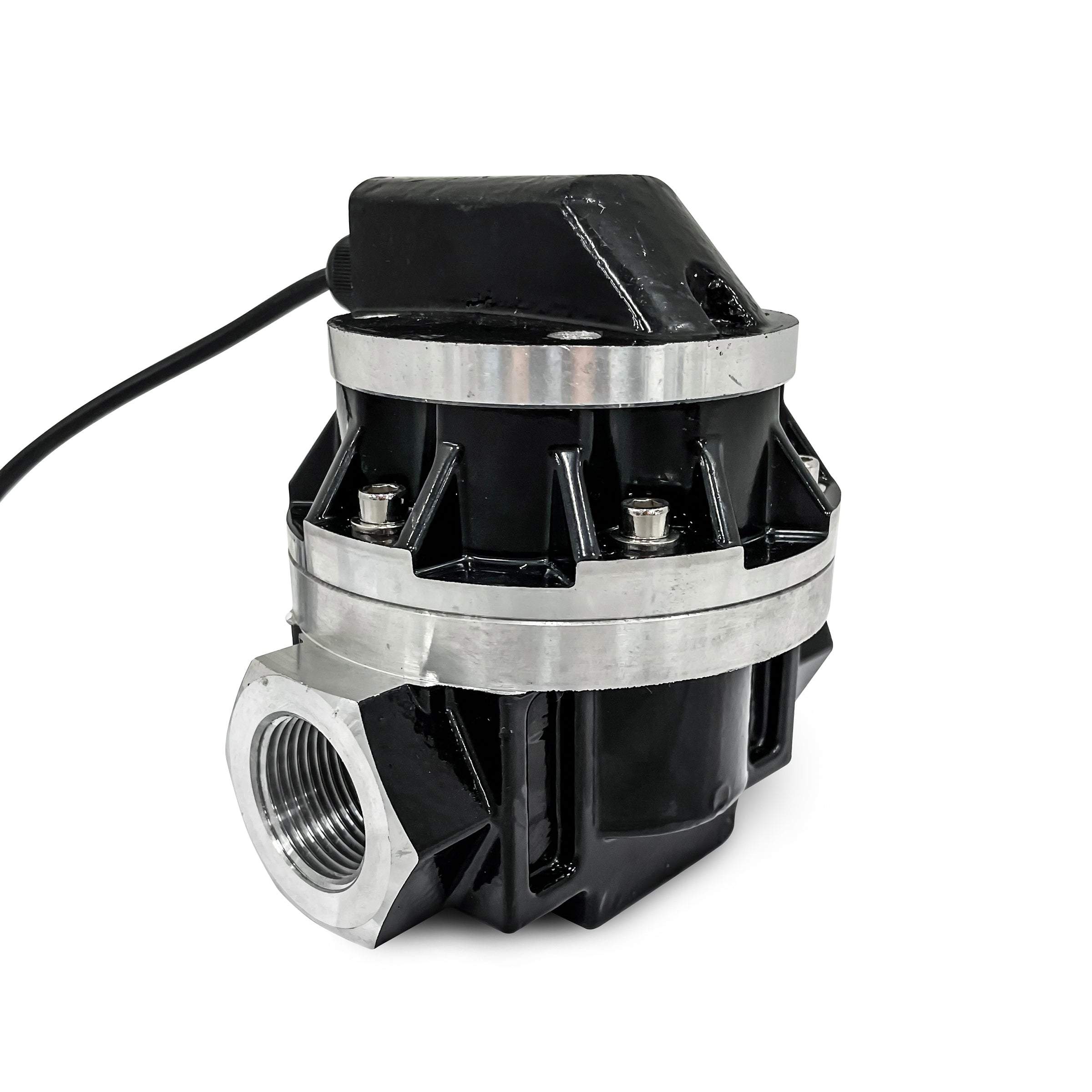

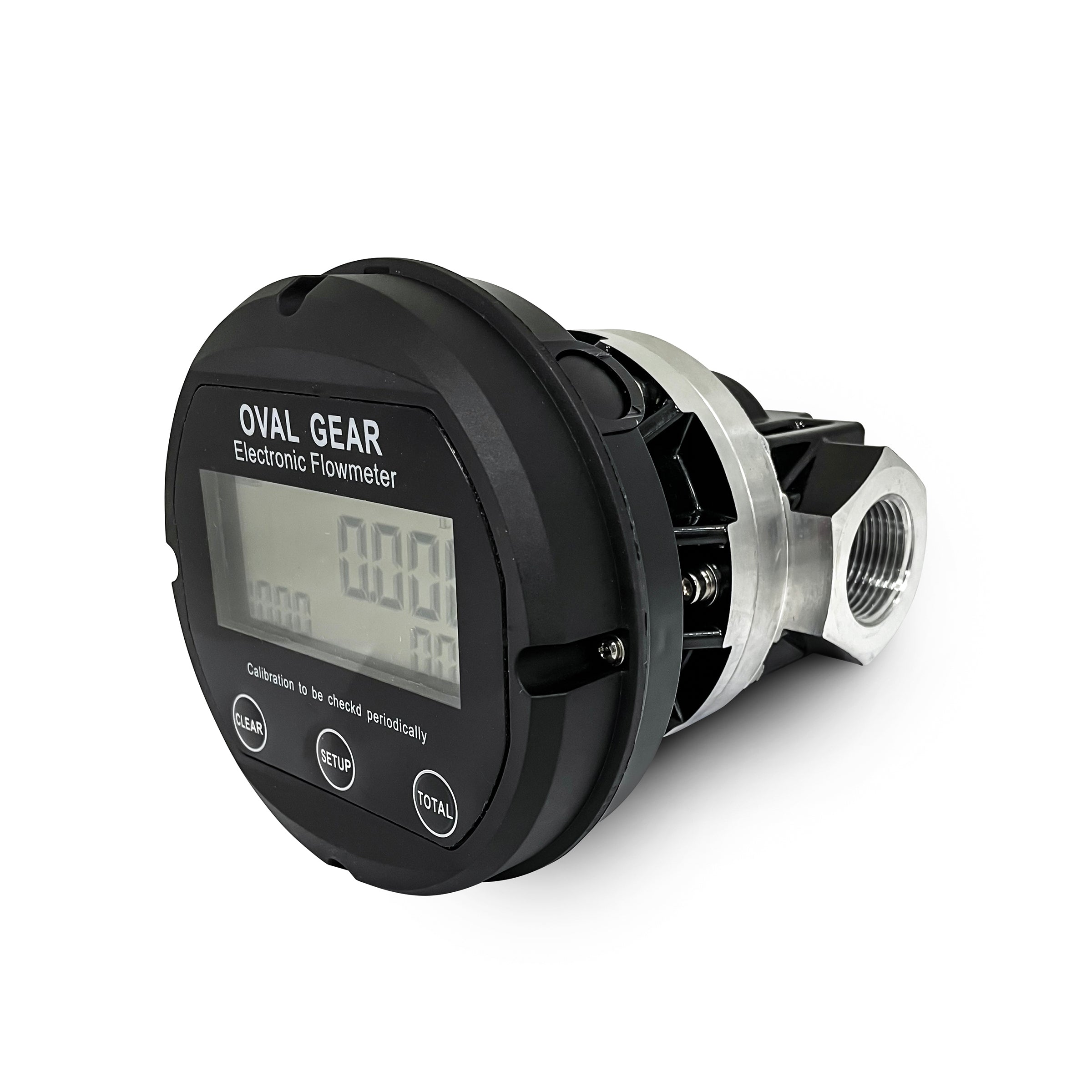

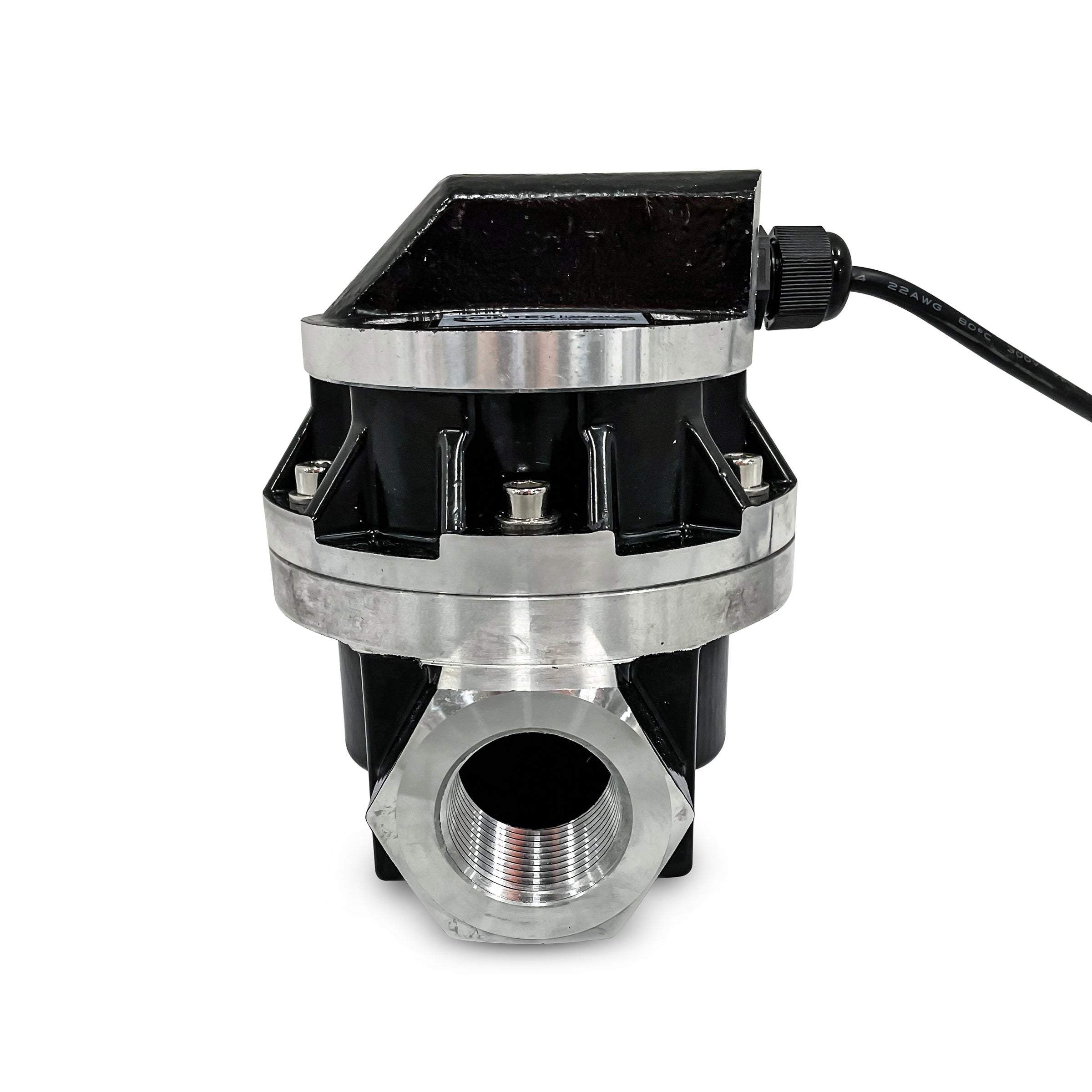

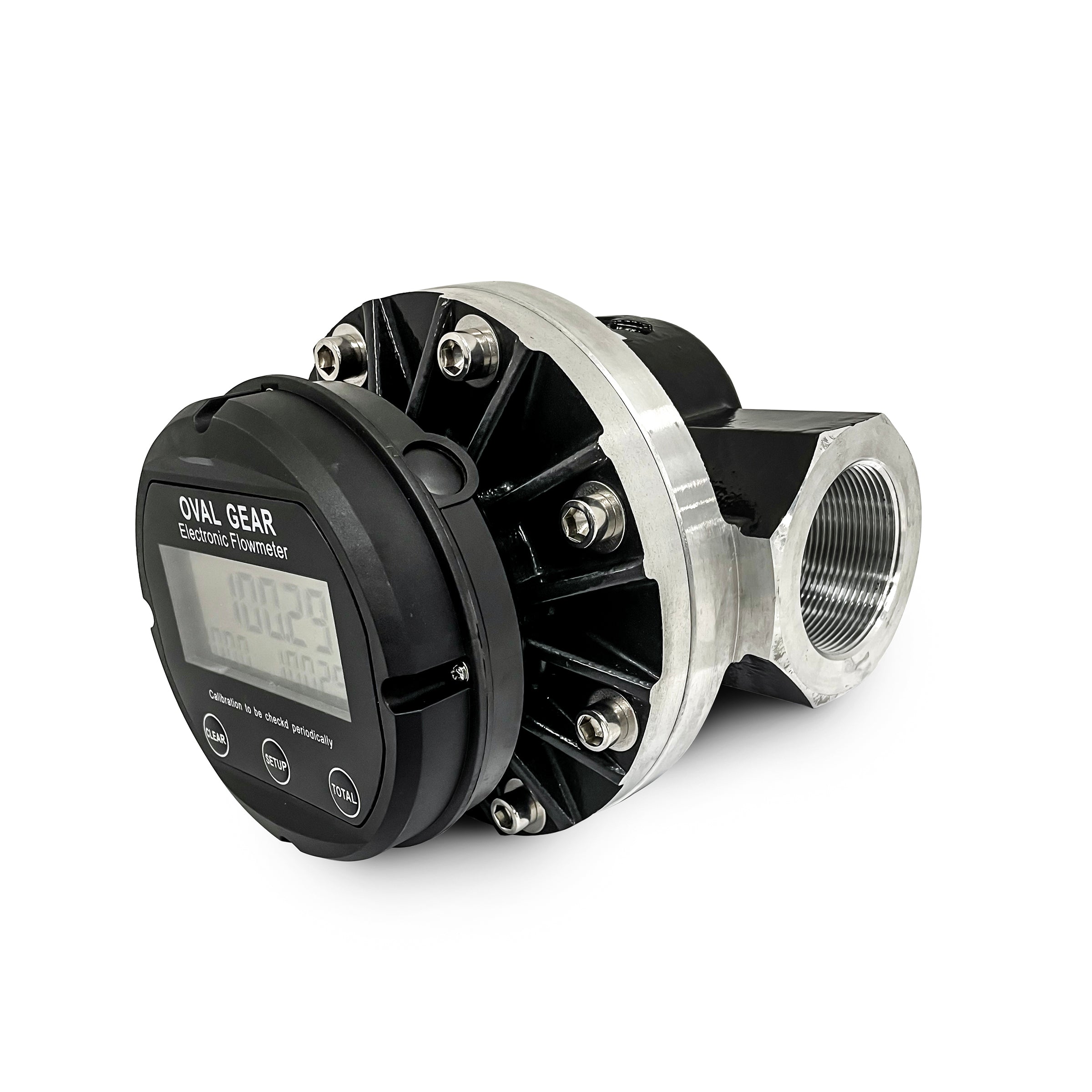

Optional pulse output model (SPEVOGMB25) 5-36v DC 15 mA draw 0.048 L/rev Optional digital display model |
Optional pulse output model (SPEVOGMB25) 5-36v DC 15 mA draw 0.280 L/rev Optional digital display model |
| Dimensions | 140mm (W) x 170mm (D) x 110mm (H) | ~500mm x 280mm x 220mm |
| Warranty | 12 Months | 12 Months |
