Paddock™ Excavator Buckets – Series 10 & 17
Freight costs for heavy & bulky items includes a tailgate truck cost. If a forklift is available please contact our sales team to discuss.
You can also contact us for a freight quote prior to ordering.
For orders outside of Australia contact us for a quote.
Scintex can ship worldwide.
Description

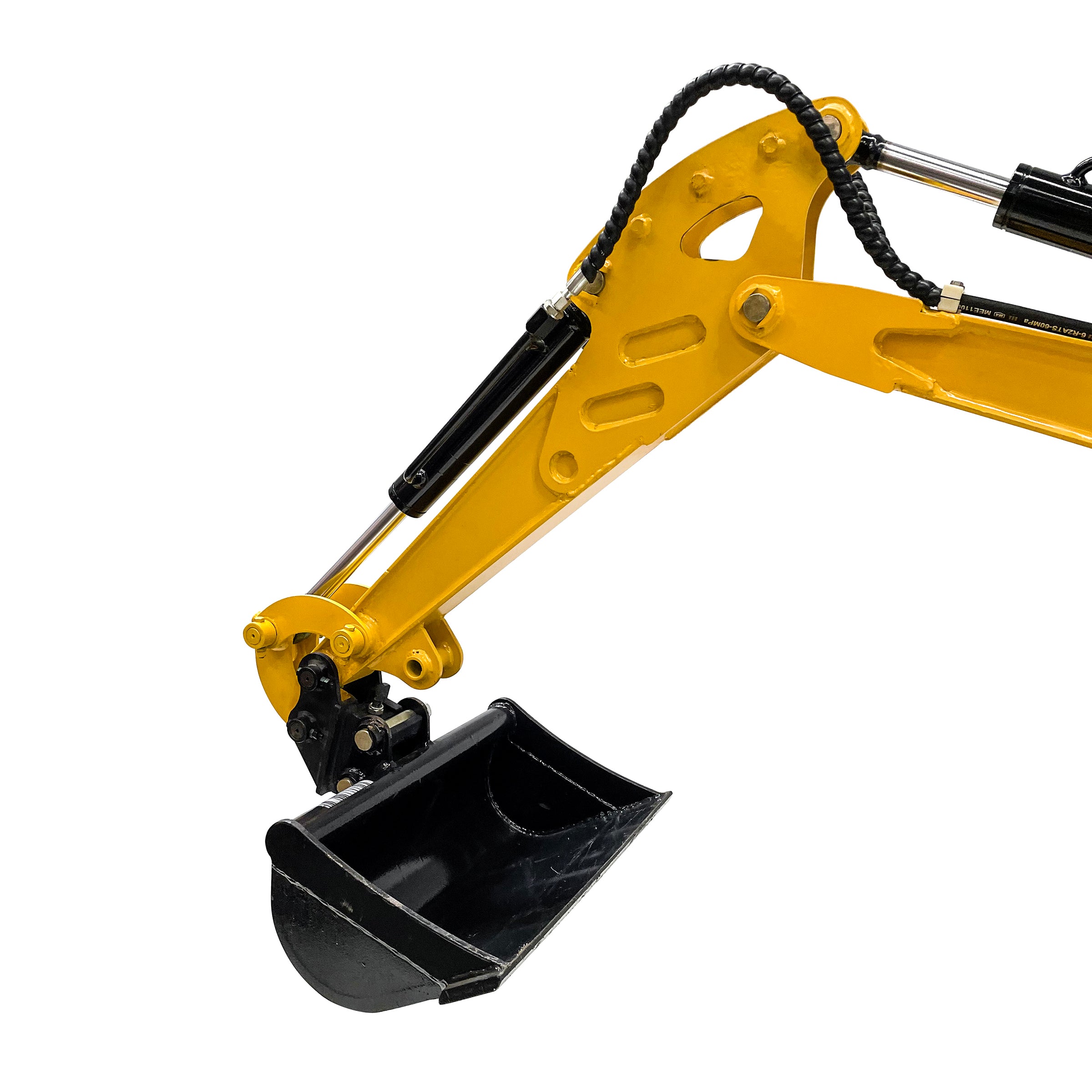

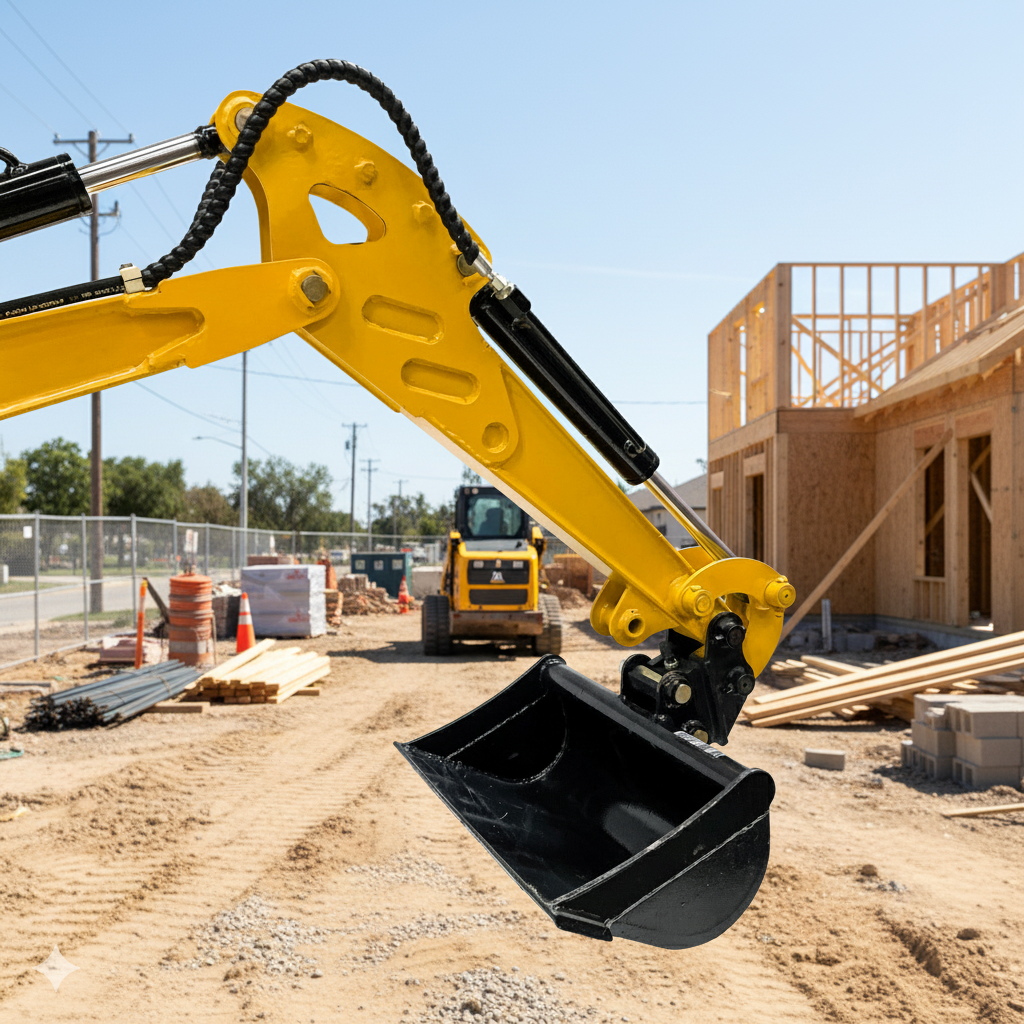

Paddock™ excavator buckets are heavy-duty digging attachments designed for compatible Paddock Series 10 and Series 17 excavators. Available in a range of bucket widths, they provide options for trenching, general excavation and bulk material removal.
Narrower buckets are ideal for trenching and concentrated digging, while wider buckets provide greater capacity for moving soil and other compatible materials.
Paddock™ Excavator Buckets – Series 10 & 17
Designed to suit compatible Paddock Series 10 and Series 17 excavators, these buckets are manufactured from heavy plate steel using CNC cutting and folding processes for strength and consistent construction.
A range of bucket sizes allows the excavator to be configured for different digging conditions and applications.
Key Features
- Heavy-duty steel construction
- CNC cut and folded from heavy plate steel
- Options to suit Paddock Series 10 and Series 17 excavators
- Direct connection or compatible quick hitch installation
- Multiple bucket widths for different excavation applications
- Narrow bucket options for trenching and concentrated digging
- Wider bucket options for increased material capacity
- Maximum recommended bucket width of 600mm
- May suit other compatible excavators with matching attachment dimensions
- 1 year warranty
Choose the Right Bucket for the Job
Narrow Excavator Buckets
Narrower buckets are well suited to trenching, services, drainage work and digging where a concentrated cutting width is required. They can also be useful when working in firmer ground where a wider bucket would require greater digging force.
Wider Excavator Buckets
Wider buckets provide greater capacity for general excavation, loose soil removal, backfilling and moving bulk material. For the Paddock Series 10 and Series 17 excavators, the stated maximum recommended bucket width is 600mm.
Typical Applications
- General excavation
- Trenching
- Drainage and service trenches
- Landscaping
- Soil removal
- Backfilling
- Property maintenance
- Construction
- Hire and rental equipment
Paddock Bucket Specifications
| Specification | Series 10 / 17 Excavators |
|---|---|
| Compatibility | Paddock Series 10 and Series 17 excavators |
| Maximum Recommended Bucket Width | 600mm |
| Connection | Direct or via compatible quick hitch |
| Pin Spacing | 85mm |
| Pin Internal Length | 92mm |
| Pin Diameter | 25mm |
| Construction | Heavy-duty steel |
| Warranty | 1 year |
Excavator Compatibility
These buckets are designed for compatible Paddock Series 10 and Series 17 excavators. They may also suit other excavators using compatible mounting dimensions.
When fitting to another excavator or quick hitch, do not rely on machine size alone. Confirm the 85mm pin spacing, 92mm pin internal length and 25mm pin diameter, along with the overall attachment geometry and quick hitch requirements, before ordering.
Safe Operation
Ensure the bucket and all attachment pins or quick hitch components are correctly fitted and secured before operation. Inspect the bucket, cutting edges, mounting points and pins regularly for excessive wear or damage.
Always operate the excavator within the machine manufacturer's rated capacities and operating instructions. Bucket size, material density, digging conditions and working radius can all affect excavator stability and performance.
