GESPASA AG-800 Petrol & Diesel Transfer Pump – 230V, 80 L/min
Description
The GESPASA AG-800 Petrol & Diesel Transfer Pump is a heavy-duty 230V sliding vane pump designed for bulk fuel transfer applications. Delivering approximately 70–80 L/min free flow, the pump combines continuous-duty operation, self-priming capability and an internal bypass valve for use with compatible fuel dispensing systems.
The motor carries IECEx certification with a stated classification of II 2 G Ex dc IIB T4, making this pump suitable for consideration in petrol and other hazardous-area fuel transfer installations when the complete system is correctly designed and installed.
GESPASA AG-800 230V Petrol & Diesel Transfer Pump
The GESPASA AG-800 is designed for higher-flow transfer of petrol / gasoline and diesel. Its sliding vane pump design provides good self-priming performance together with useful discharge pressure for refuelling and bulk fuel transfer applications.
With a free-flow capacity of approximately 70–80 L/min, a 0.37kW single-phase motor and internal recirculation bypass, the AG-800 is suited to commercial, agricultural and industrial fuel dispensing systems.
GESPASA AG-800 Features
- Suitable for petrol / gasoline and diesel
- Approx. 70–80 L/min free-flow capacity
- 230V AC single-phase operation
- Continuous-duty motor
- Sliding vane pump design
- Self-priming capability
- Approx. 2.7m suction lift
- Maximum discharge head of approximately 20m
- Internal recirculation bypass valve
- Integral on/off switch
- Motor thermal protection
- IP55 motor rating
- IECEx-certified motor
- 1" BSP female threaded or flange connections
- 3m power cable with Australian plug
- Rust-protection treatment
- 12 month warranty
Petrol & Diesel Compatible
Unlike many conventional diesel-only transfer pumps, the AG-800 is specified for use with both petrol / gasoline and diesel.
Petrol produces highly flammable vapours, so the pump and complete electrical and fuel-transfer installation must be correctly selected and installed for the intended environment.
IECEx Certified Motor
The AG-800 is fitted with a motor carrying IECEx certification. The supplied motor classification is:
II 2 G Ex dc IIB T4
The IECEx certification applies to the motor as specified. Suitability of the complete pump installation for a particular hazardous area depends on the site classification, wiring, switching, fittings, hoses and all other components in the system.
Hazardous-area installations should be designed and completed by appropriately qualified personnel in accordance with applicable requirements.
70–80 L/min Fuel Transfer
The pump provides approximately 70–80 L/min under free-flow conditions, making it suitable for faster refuelling and bulk transfer applications.
Actual flow will depend on factors including:
- Suction lift
- Fuel type
- Hose diameter and length
- Filters and flow meters
- Fittings and valves
- Discharge elevation
- Other system restrictions
Sliding Vane Pump Design
The sliding vane pumping system provides self-priming performance with a stated maximum suction lift of approximately 2.7m.

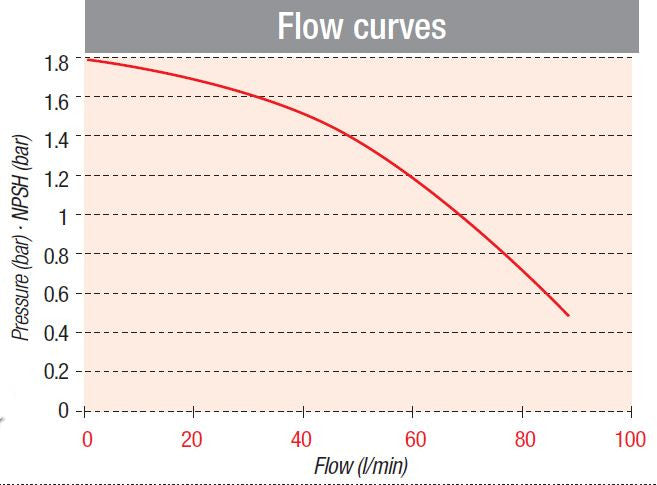

The pump also provides a maximum discharge head of approximately 20m, allowing it to operate in systems requiring useful discharge pressure as well as high flow.
Maximum flow and maximum head occur at different operating conditions, so actual transfer performance will depend on the complete installation.
Internal Bypass Valve
The AG-800 incorporates an internal recirculation bypass valve. This allows fuel to circulate internally for brief periods when the dispensing nozzle is closed while the pump remains operating.
This is useful when the pump is combined with an automatic shut-off nozzle or where there is a short delay between switching the pump on and commencing dispensing.
Do not leave the pump operating on bypass for extended periods. Prolonged recirculation can increase fuel and pump temperature and may cause premature seal or component wear.
Continuous-Duty Operation
The motor is designed for continuous-duty fuel transfer applications, making the pump suitable for commercial installations requiring longer operating periods than intermittent-duty pumps.
Continuous-duty operation still requires the pump to remain within its specified pressure, temperature, electrical and installation limits.
Typical Applications
- Petrol / gasoline transfer
- Diesel transfer
- Commercial refuelling systems
- Bulk fuel storage tanks
- Farm fuel installations
- Workshops and service facilities
- Industrial equipment refuelling
- Compatible marine fuel transfer installations
GESPASA AG-800 Specifications
| Specification | Details |
|---|---|
| Brand | GESPASA |
| Model | AG-800 |
| Compatible Fluids | Petrol / gasoline and diesel |
| Transfer Capacity | Approx. 70–80 L/min free flow |
| Pump Type | Sliding vane |
| Inlet / Outlet | 1" BSP female thread or flange connection |
| Power | 230V AC, 50Hz, single phase |
| Motor Power | 0.37kW |
| Current Consumption | Approx. 2.3–3.5A |
| Motor Speed | 1430 RPM |
| Motor Protection | Thermal protector |
| Motor Classification | II 2 G Ex dc IIB T4 |
| Motor Certification | IECEx – certificate available on request at time of purchase |
| Ingress Rating | IP55 |
| Suction Lift | Approx. 2.7m |
| Maximum Discharge Head | Approx. 20m |
| Bypass | Internal recirculation bypass |
| Controls | Integral on/off switch |
| Power Lead | 3m cable with Australian plug |
| Construction | Steel |
| Approx. Weight | 19kg |
| Approx. Dimensions | 400 × 165 × 155mm (L × W × H) |
| Warranty | 12 months |
Installation & Safety
Petrol is a highly flammable fuel and requires appropriate equipment and installation practices. Ensure the complete transfer system, including electrical equipment, hoses, nozzles, filters, fittings and bonding or earthing arrangements where required, is suitable for the intended fuel and installation environment.
Where the pump is installed in a classified hazardous area, the complete installation must comply with the applicable hazardous-area requirements. The IECEx certification stated on this listing relates to the pump motor.
