SELF-PRIMING SHALLOW WELL JET PUMP
Description
This is a 240 volt electric water jet pump. These pumps are high quality and designed for reliable long term operation with a Italian mechanical seal and a large 750W motor. Ideal for household pressure pumping operations, gardening, water transfers plus much more.

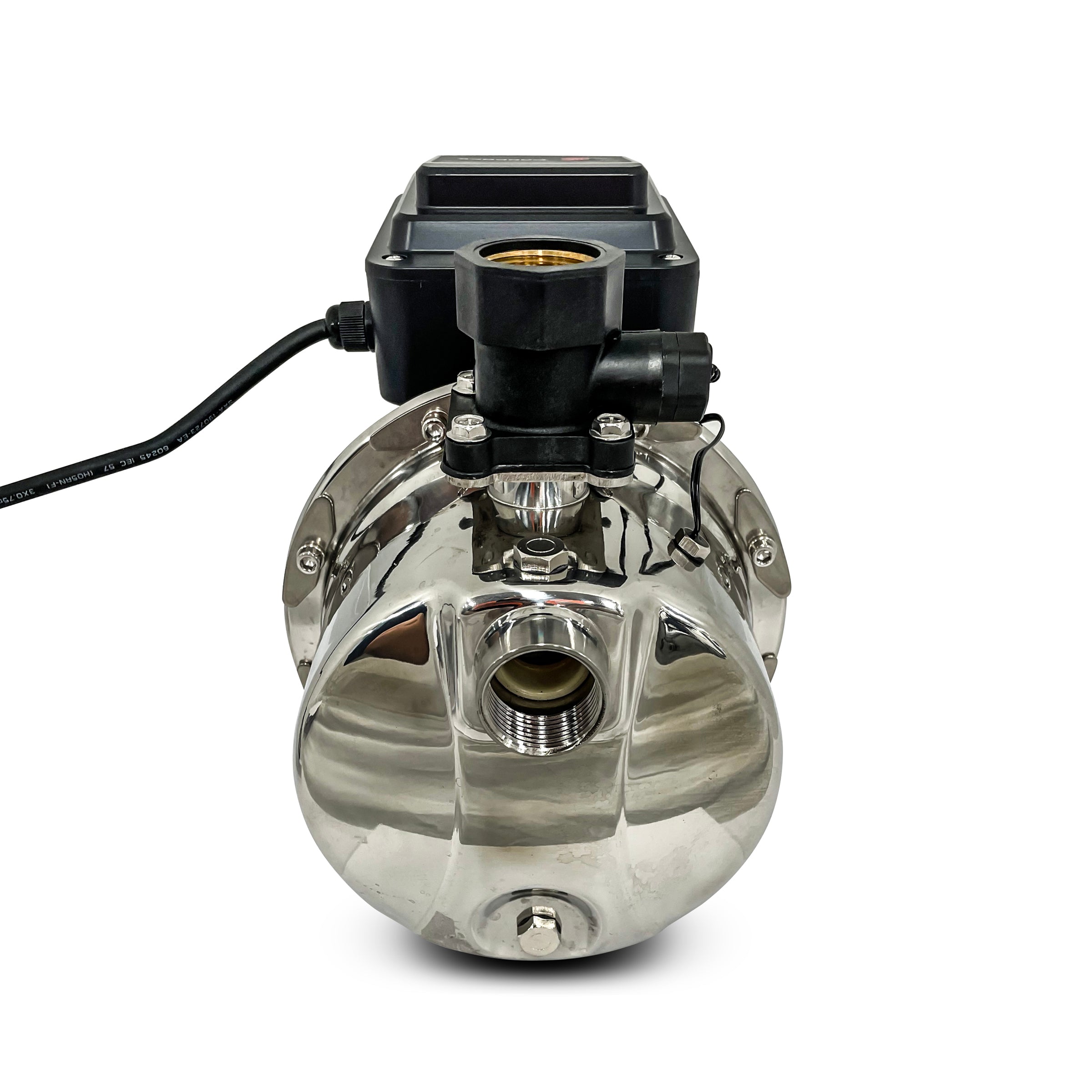

Stainless Steel Water Transfer Jet Pump
Jet pumps are ideal for operations where there is a high suction lift requirement. This pump will self prime up to 9m making it ideal for operations other pumps would struggle with.
This pump is constructed with a stainless steel pump casing and impeller, ensuring extended operating life. The pump includes an Italian made silicon carbide mechanical seal ensuring leak free operation. Stainless steel shaft reduces opportunities for corrosion.
These pumps can be used for household use or industrial applications. Popular uses include home pressure pumping, irrigation, dairy, farming and residential booster pumping. This pump is also popular for shallow well jet pumping operations. If your water table is less then 9m deep, lift water to the surface without the need for a down hole injector nozzle.
These pumps come with a intelligent controller integrated which allows some smart controls and protection. The pump will shutdown if it doesn't detect water flow however has a delay on this protection to allow for priming under shallow well pumping conditions. The start up pressure can also be adjusted.
Centrifugal Jet Pump Features:
- 2m lead with plug end
- Low Noise, smooth operation
- Compact Construction
- High Suction Capacity
- 12 month warranty
Pump Specification | Value |
---|---|
Voltage | 240V Single Phase |
Power | 750 Watts |
Motor | Continuous Duty Cycle |
IP Rating | 44 |
Flow Rate | 80 L/min, 4.8m3/hr |
Inlet / Outlet | 1.0" |
Pressure | 45m ~450kpag, 66psig |
Sensing and protection systems |
Pressure sensing Flow sensing Temperature sensing shutdown set at 80C (Temp sensing can by bypass to run to 100C) |
Max. Suction | ~9m |
Compatible Fluids | Water, recommended clean |
Approx. Weight | 10 Kg |
Approx Dimensions | 35 x 18 x 21 cm |
Construction |
Die Cast Aluminium Pump Frame Stainless steel pump casing Stainless steel impeller Stainless steel shaft Silicone Carbide Mechanical Shaft Seal |

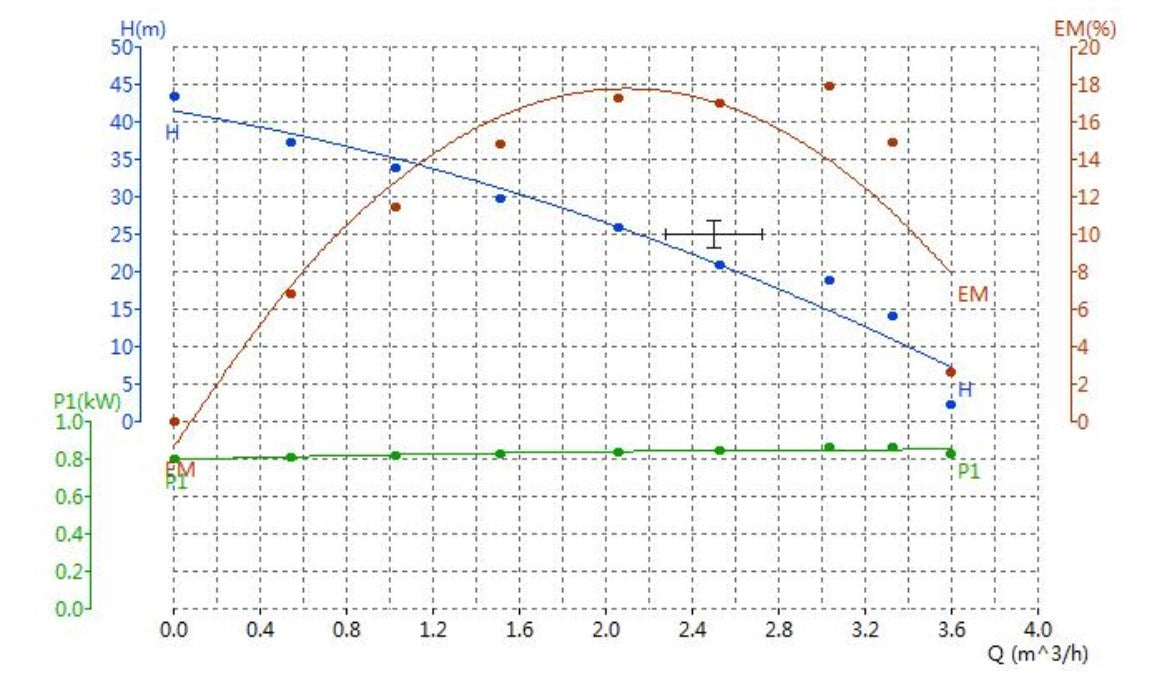

Pump Data Table
Head (m) | Flow Rate (m3/hr) | Current (A) |
---|---|---|
2.2 | 3.59 | 3.85 |
14.2 | 3.32 | 3.99 |
21 | 2.52 | 3.94 |
29.8 | 1.51 | 3.84 |
37.3 | 0.54 | 3.76 |
43.3 | 0 | 3.7 |
