Description
Titan flange pipe alignment tools or pins are safe, fast, and effective. The tool's tapered shaft is a patented feature that eliminates the need for hammering and prying when lining up flange bolt holes.
Titan Flange Aligning Tools are sold individually and in sets.
Simply find a bolt hole that is aligned enough for the tapered shaft to fit through and turn.
If necessary, use a second tool and turn until the bolt holes are in alignment and insert flange bolts.
Also available through:
| Titan Flange Aligning Tool | |||
|---|---|---|---|
| CATALOG NO. | BOLT HOLE SIZE | LENGTH | WEIGHT |
| FT00 | 3/8" | 2-1/8" | 1-1/4 ozs. |
| FT0 | 1/2" | 2-3/8" | 2-1/4 ozs. |
| FT01 | 5/8" | 2-3/4" | 4 ozs. |
| FT02 | 3/4" | 3-1/4" | 7 ozs. |
| FT03 | 7/8" | 3-1/2" | 11 ozs. |
| FT04 | 1" | 4" | 1 lb. |
| FT06 | 1-1/8" | 5" | 1-1/2 lbs. |
| FT08 | 1-1/4" | 5-1/2" | 2 lbs. |
| FT1012 | 1-3/8" | 6-1/4" | 2-7/8 lbs. |
| FT14 | 1-1/2" | 6-1/2" | 3-1/4 lbs. |
| FT16 | 1-5/8" | 7-1/4" | 4-1/8 lbs. |
| FT1820 | 1-3/4" | 7-7/8" | 4-3/4 lbs. |
| FT2426 | 2" | 9" | 6-5/8 lbs. |
| FT30 | 2-1/8" | 12" | 10-3/8 lbs. |
| FT34 | 2-3/8" | 13-1/4" | 13-1/8 lbs. |
| FT3642 | 2-5/8" | 14" | 16-7/8 lbs. |
| FT48 | 2-7/8" | 13-5/8" | 24-3/8 lbs. |
| FT5054 | 3-1/8" | 18" | 35-7/8 lbs. |
| FT60 | 3-5/8" | 20" | 54-7/8 lbs. |
| EXTRA LONG | |||
| FT00L | 3/8" | 5-1/8" | 10 ozs. |
| FT0L | 1/2" | 5-3/8" | 10 ozs. |
| FT01L | 5/8" | 5-3/4" | 12 ozs. |
| FT02L | 3/4" | 6-1/4" | 14 ozs. |
| FT03L | 7/8" | 6-1/2" | 1-1/8 lbs. |
| FT04L | 1" | 7" | 1-1/2 lbs. |
| FT06L | 1-1/8" | 8" | 2-1/4 lbs. |
| FT08L | 1-1/4" | 8-1/2" | 3 lbs. |
| FT1012L | 1-3/8" | 9-1/4" | 4 lbs. |
| FT14L | 1-1/2" | 9-1/2" | 4-1/2 lbs. |
| FT16L | 1-5/8" | 10-1/4" | 5-3/4 lbs. |
| FT1820L | 1-3/4" | 10-7/8" | 6-1/4 lbs. |
| FT2426L | 2" | 12" | 7-1/2 lbs. |
| FT30L | 2-1/8" | 15" | 13 lbs. |
| FT34L | 2-3/8" | 16-1/4" | 15 lbs. |
| FT3642L | 2-5/8" | 17" | 18 lbs. |
Note: Tool length does not include the hex drive head.

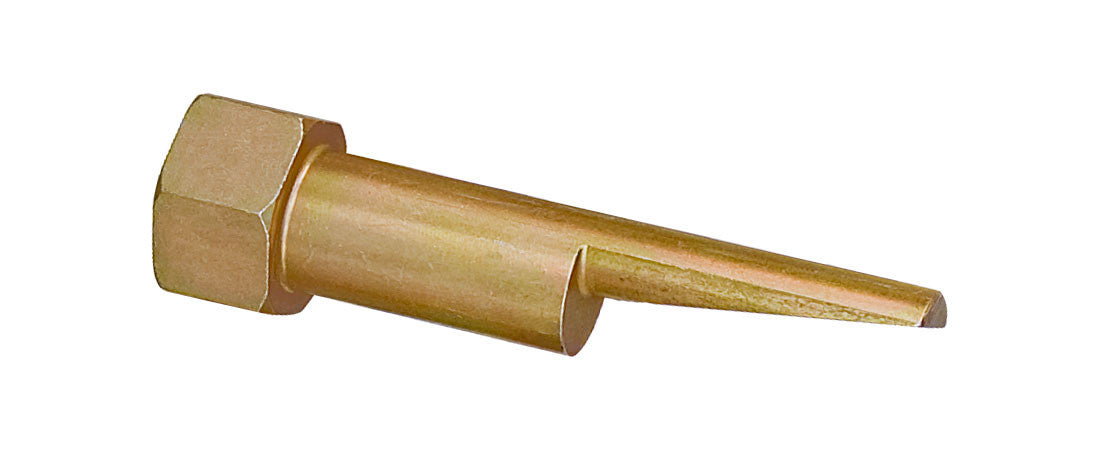

FTS212 Shown.
| TITAN Flange Aligning Tool Sets | ||
|---|---|---|
| CATALOG NO. | Includes 2 of the following: | Weight |
| FTS24 | FT02, FT03, FT04 | 8 lbs. |
| FTS26 | FT02, FT03, FT04, FT06 | 11 lbs. |
| FTS28 | FT02, FT03, FT04, FT06, FT08 | 15 lbs. |
| FTS212 | FT02, FT03, FT04, FT06, FT08, FT1012 | 21 lbs. |
| FTS1426 | FT14, FT16, FT1820, FT2426 | 47 lbs |
| TITAN Flange Aligning Tool Sets (Extra Long) | ||
|---|---|---|
| CATALOG NO. | Includes 2 of the following: | Weight |
| FTS24L | FT02L, FT03L, FT04L | 17 lbs. |
| FTS26L | FT02L, FT03L, FT04L, FT06L | 21 lbs. |
| FTS28L | FT02L, FT03L, FT04L, FT06L, FT08L | 26 lbs. |
| FTS212L | FT02L, FT03L, FT04L, FT06L, FT08L, FT1012L | 37 lbs. |
