Description

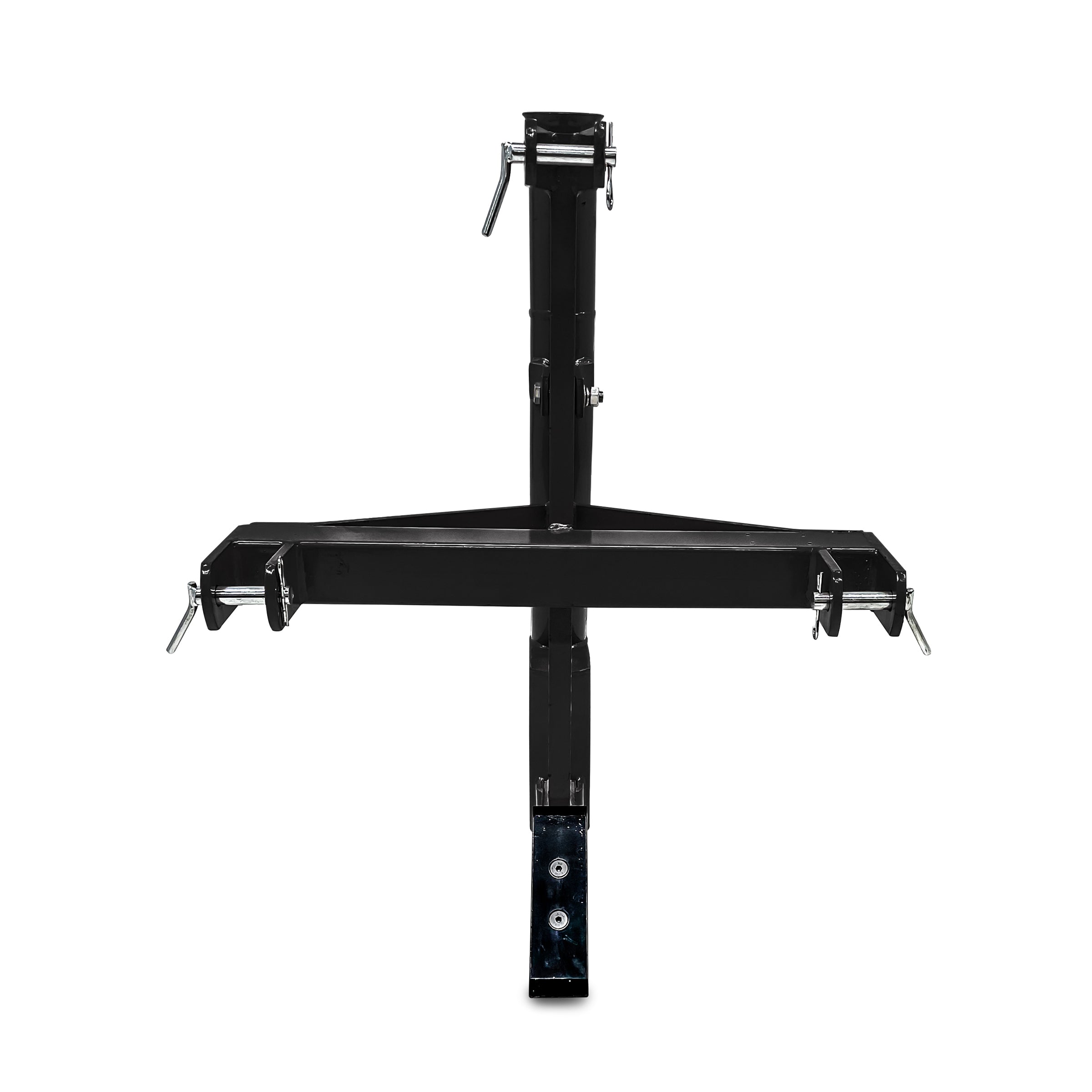

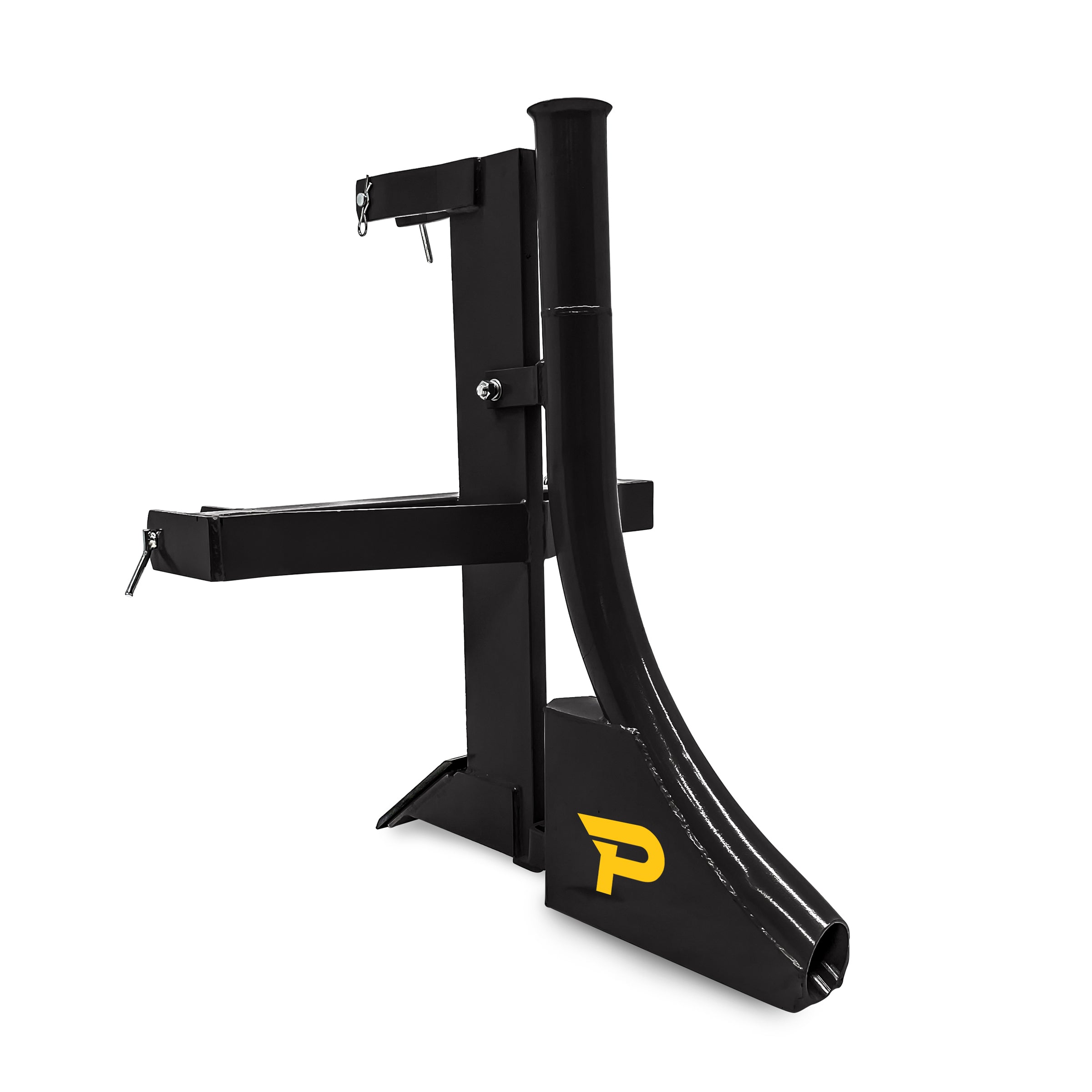

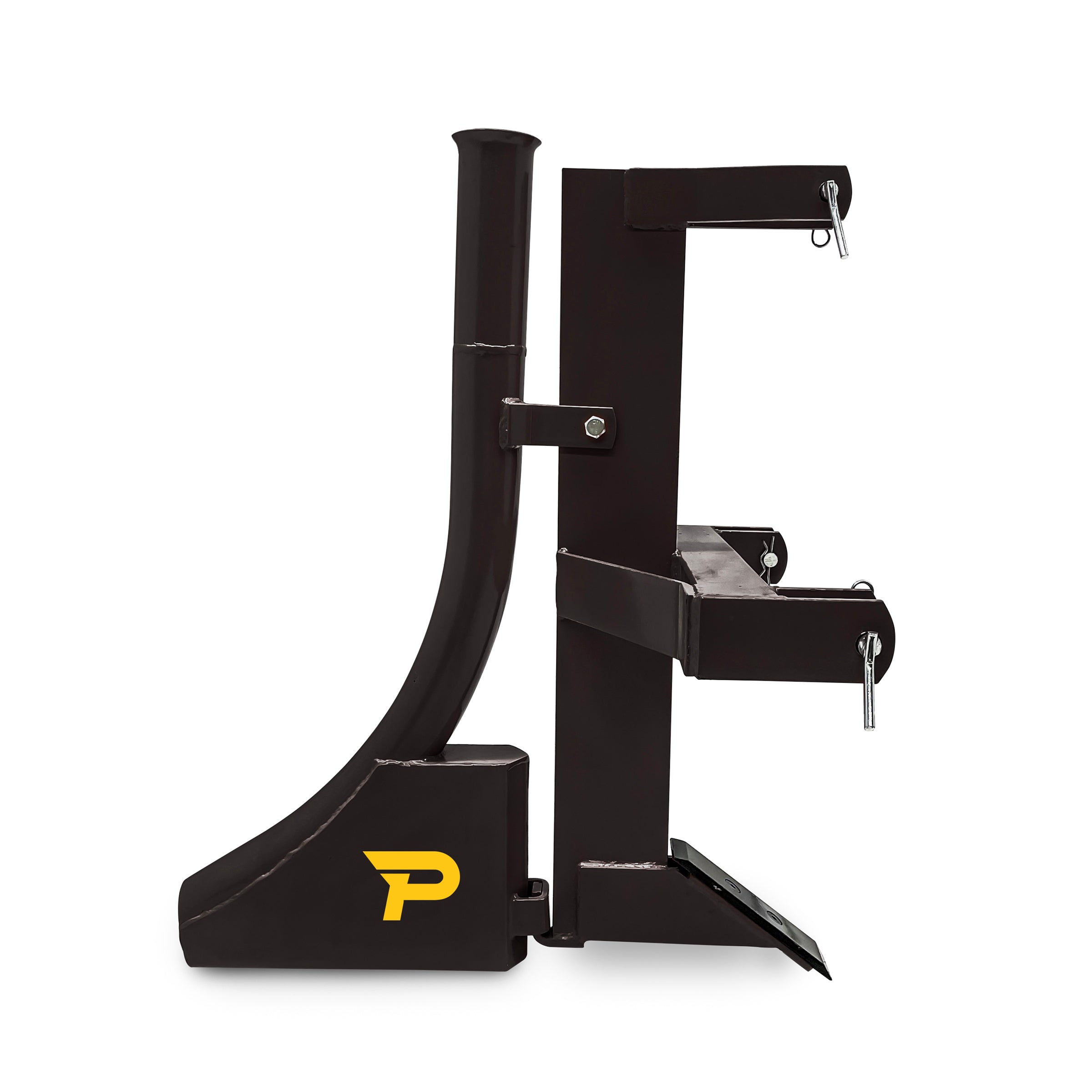

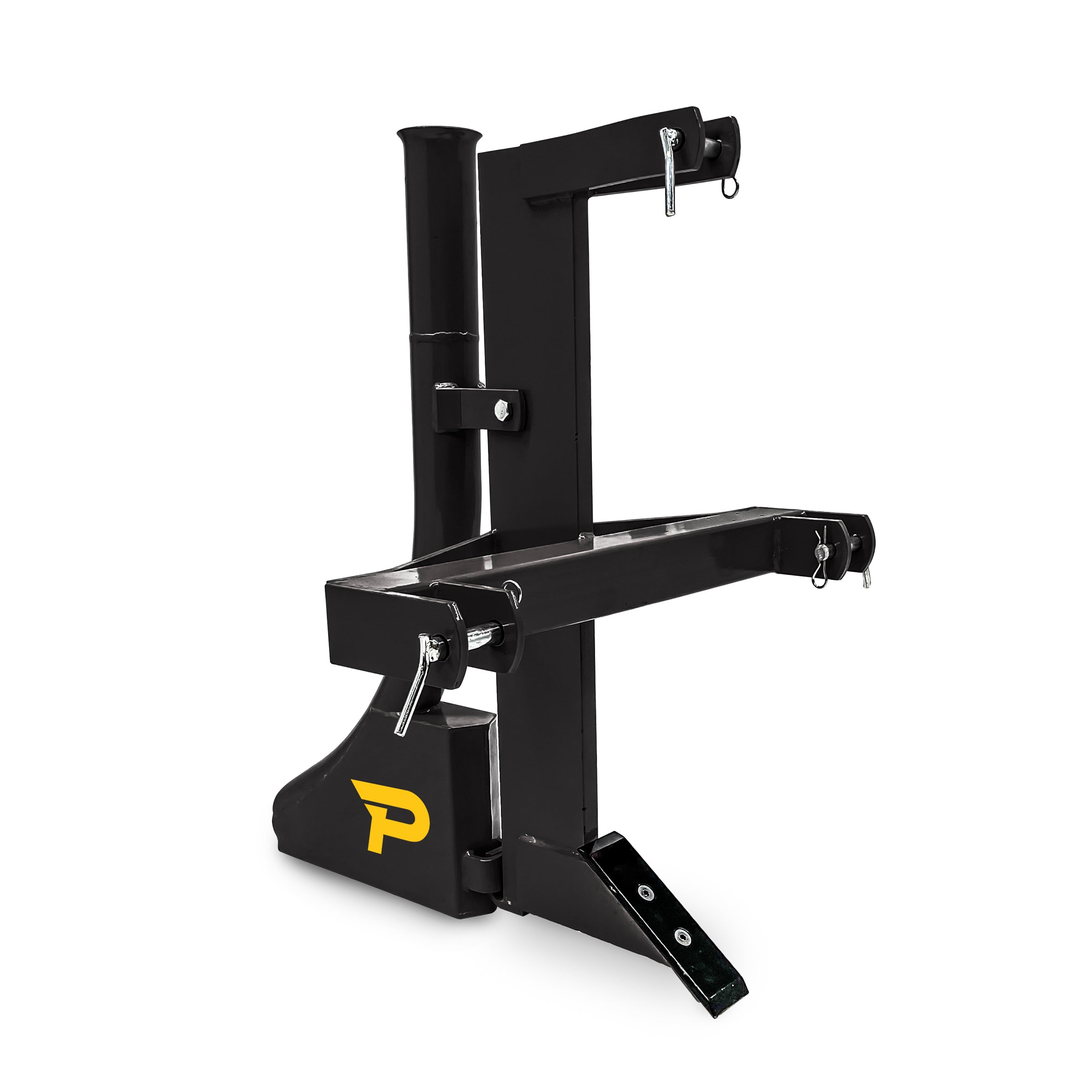

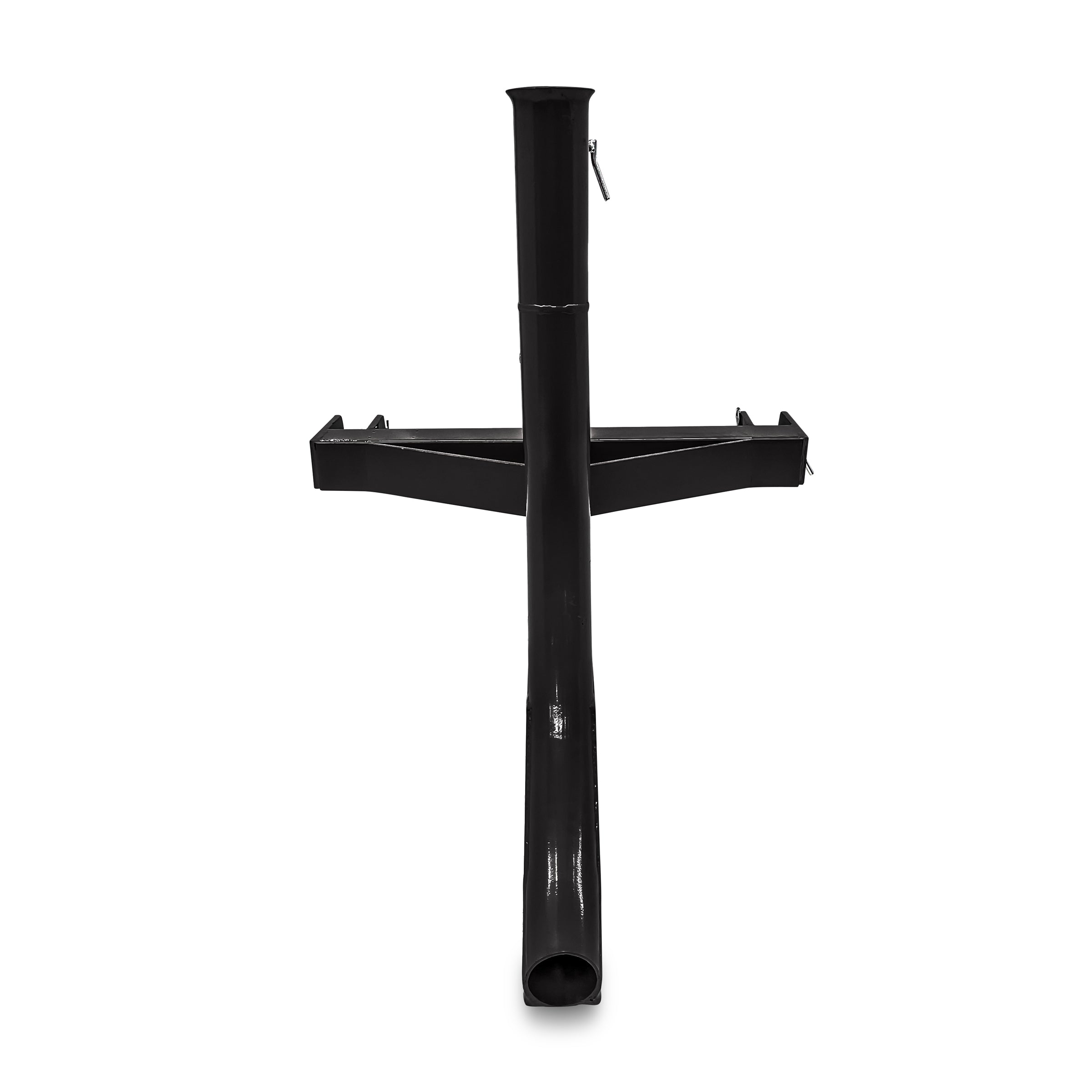

A heavy duty single ripper pipe layer by Paddock Machinery, built tough for Australian conditions. Available in 50mm and 80mm models to suit a range of pipe sizes. Ideal for laying poly pipe for acreage and farm water projects. This implement suits a range of Category 1 and Category 2 tractors including John Deere, Massey Ferguson, Case, Kubota and more. Category 1 pins are included, while the pipe layer can be fitted to Category 2 tractors using suitable conversion pins or a Cat II shim kit. The heavy duty ripper tooth is replaceable when worn, with spare parts readily available through Paddock Machinery in Australia.
Paddock Tractor Ripper Pipe Layer
- Suits a wide range of Category 1 and Category 2 tractors
- Heavy duty steel construction
- Includes Category 1 linkage pins
- No auxiliary hydraulics required
- Low maintenance design
- Replaceable ripper tooth
- Available in 50mm and 80mm models
- Suitable for tractors from 18hp to 60hp, depending on model
The Paddock tractor ripper pipe layer is a simple and effective implement for installing underground pipe across farms, acreages and rural properties. Designed for tractors with Category 1 or Category 2 three point linkage, the pipe layer allows poly pipe to be installed as the tractor travels along the required route.
No auxiliary hydraulics are required, making operation and installation straightforward. Simply connect the implement to the tractor's three point linkage, feed the pipe through the tube and lower the ripper to the required operating depth.
The two available models cater for different tractor sizes and pipe requirements. The 50mm model is suited to tractors from 18-40hp and pipe up to approximately 42mm outside diameter, while the larger 80mm model suits tractors from 30-60hp and pipe up to approximately 55mm outside diameter.
Heavy Duty Construction
Designed in Australia for Australian conditions, these pipe layers feature heavy duty steel construction for demanding farm and acreage use. The main frame uses 30mm solid steel with a 10mm steel sub-frame and 5mm thick pipe laying tube.
The ripper blade is replaceable, allowing this wear component to be changed without replacing the complete implement. Spare parts and product support are available through the local Australian team.
Tractor Ripper Pipe Layer Specifications
| Specification | 50mm Model | 80mm Model |
|---|---|---|
| Brand | Paddock | Paddock |
| Part Number | PT3PLPL50 | PT3PLPL80 |
| Tube Internal Diameter | 50mm | 80mm |
| Pipe Size | Up to 1.5" / 42mm | Up to 2" / 55mm |
| Operating Depth | 440mm | 440mm |
| 3PL to Base Measurement | 520mm | 600mm |
| Recommended Tractor Power | 18-40hp | 30-60hp |
| Linkage | Category 1 or 2 | Category 1 or 2 |
| Construction |
Heavy duty enamel coated steel 30mm solid steel main frame 10mm steel sub-frame 5mm tube thickness |
Heavy duty enamel coated steel 30mm solid steel main frame 10mm steel sub-frame 5mm tube thickness |
| Features |
Includes Category 1 pins Replaceable ripper blade Blade: 10mm thick x 260mm long x 74mm wide 70mm bolt spacing, centre-to-centre |
Includes Category 1 pins Replaceable ripper blade Blade: 10mm thick x 260mm long x 74mm wide 70mm bolt spacing, centre-to-centre |
| Weight | 60kg | 65kg |
| Dimensions | 80cm (W) x 85cm (D) x 101cm (H) | 80cm (W) x 85cm (D) x 127cm (H) |
| Warranty | 12 Months (excludes ripper tooth) | 12 Months (excludes ripper tooth) |
Note: Some minor assembly is required on arrival.
