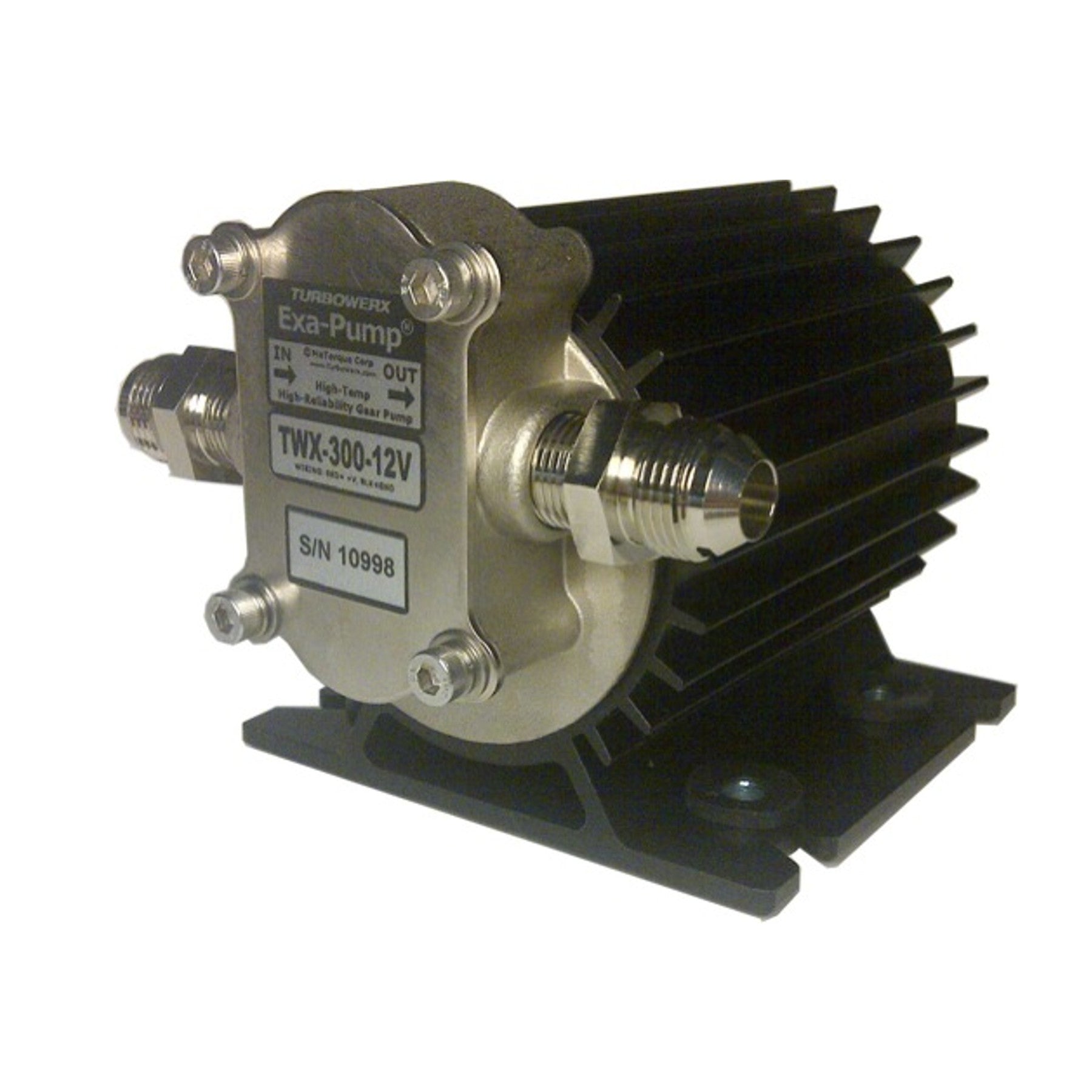

TurboWerx Exa-Pump TWX-300 High Temperature Oil Scavenge Pump

Description

The TurboWerx Exa-Pump TWX-300 is a high-temperature electric gear pump designed for demanding automotive fluid transfer and turbocharger oil scavenging applications. Built around a hardened bronze spur-gear pump head, high-temperature motor components and a finned aluminium heatsink, it is designed for continuous-duty operation in severe environments.

Available in 12V and 24V versions, the Exa-Pump delivers approximately 7.5–11.5 L/min open flow depending on oil temperature and viscosity, and can also generate more than 50 PSI in suitable pressure-pump applications.

TurboWerx Exa-Pump TWX-300

The TurboWerx Exa-Pump is designed for high-temperature oil scavenging and circulation applications where a robust, electrically driven gear pump is required.

Common applications include:

• Turbocharger oil scavenging
• Twin-turbo oil return systems
• Supplementary engine oil circulation
• Transmission fluid circulation
• Differential / rear-end oil circulation
• External oil cooler systems
• Dedicated turbocharger oil supply systems when correctly configured
• Other compatible high-temperature fluid circulation applications

Exa-Pump Features

• 12V or 24V DC versions
• Maximum rated fluid temperature of 175°C / 350°F
• Open-flow rate approximately 7.5–11.5 L/min / 2–3 GPM
• Capable of 50+ PSI in suitable pressure-pump applications at reduced flow
• Self-priming capability greater than 3ft
• Hardened bronze spur-gear rotors
• 10,000-hour rated dual hybrid ball bearings
• 10,000-hour rated oversized motor brushes
• High-temperature insulated copper motor windings
• Black anodised extruded aluminium heatsink
• Nickel-plated pump head
• Stainless steel pump-head fasteners
• 3/8" NPT female inlet and outlet ports
• Includes 2 x 3/8" NPT to -8AN nickel-plated adapters
• High-temperature power wiring
• Weatherproof electrical connectors
• Rubber-isolated mounting bracket
• Reversible flow by reversing electrical polarity
• 2 year warranty

High Temperature Operation

The Exa-Pump is rated for fluid temperatures up to 175°C / 350°F. The pump materials, motor insulation, bearings and heatsink have been selected for demanding high-temperature applications such as turbocharger oil scavenging.

Do not exceed the 175°C rated fluid temperature. Operation above the specified temperature may damage the pump and void warranty coverage.

Flow Performance

Open-flow performance is approximately 2–3 GPM / 7.5–11.5 L/min, depending on oil viscosity and temperature.

As with any positive-displacement pump, actual flow will vary with:

• Fluid viscosity
• Fluid temperature
• Suction conditions
• Discharge pressure
• Hose and fitting size
• System restrictions

The pump is also capable of generating more than 50 PSI at reduced flow in suitably configured pressure-pump applications.

Turbocharger Oil Scavenging

The Exa-Pump is particularly well suited to turbocharger oil scavenging systems where gravity oil return is difficult or impossible due to turbocharger placement.

The positive-displacement gear design allows the pump to move hot engine oil away from the turbocharger and return it to a suitable point in the lubrication system.

Correct hose sizing, filtration, mounting, venting and return routing are important for reliable operation.

Hardened Bronze Spur Gears

The pump head uses hardened bronze spur gears designed for durability in oil circulation service.

The gear profile is angle-cut to help reduce operating noise and vibration while maintaining positive-displacement pumping performance.

High Temperature Motor & Bearings

The Exa-Pump uses high-temperature motor insulation, oversized brushes and dual hybrid ball bearings rated for extended operating life.

These components are designed to support long-duration operation in demanding automotive environments when the pump is installed and operated within its specified limits.

Electrical Requirements

The pump must be protected by a correctly rated fuse or circuit breaker.

The applied voltage may be up to 25% above the nominal rated voltage. Exceeding this limit may damage the pump and void warranty coverage.

For race vehicles operating continuously in the 16–18V range, the 24V Exa-Pump is the recommended version.

Reversible Pump Direction

Pump flow direction can be reversed by reversing the electrical polarity. This can simplify installation where the preferred hose routing requires the pump to operate in the opposite direction.

Ports & Included Fittings

The pump head uses 3/8" NPT female ports.

Each pump is supplied with:

• 2 x nickel-plated 3/8" NPT to -8AN adapters
• Weatherproof electrical connector
• Rubber-isolated mounting bracket

Construction

Dimensions & Weight

Approximate total pump weight is 2.7kg / 6lb. Motor diameter is approximately 3".

View Exa-Pump Dimensions – Without Heatsink

View Heatsink Dimensions – Left

View Heatsink Dimensions – Right

IN-LINE FILTER REQUIRED

TurboWerx recommends using the Exa-Pump with a suitable high-temperature in-line filter to protect the internal pump gears from metallic debris and other contamination.

The TurboWerx Exa-Pure filter is designed for this application and filters to approximately 100 microns.

Filter specifications include:

• 100 micron filtration
• 3/8" female inlet and outlet ports
• Includes 2 x -8AN adapters
• Nickel-plated construction
• Approx. dimensions: 90 x 30mm excluding fittings

TurboWerx Filter Part #: TWX-EP38NPT-100-N
Scintex Code: STWX-EP-100u

Warranty

The TurboWerx Exa-Pump is covered by a 2 year warranty when purchased as a genuine TurboWerx product through Scintex.

There are no user-serviceable internal components. Opening the pump or removing pump-head fasteners may void warranty coverage.
